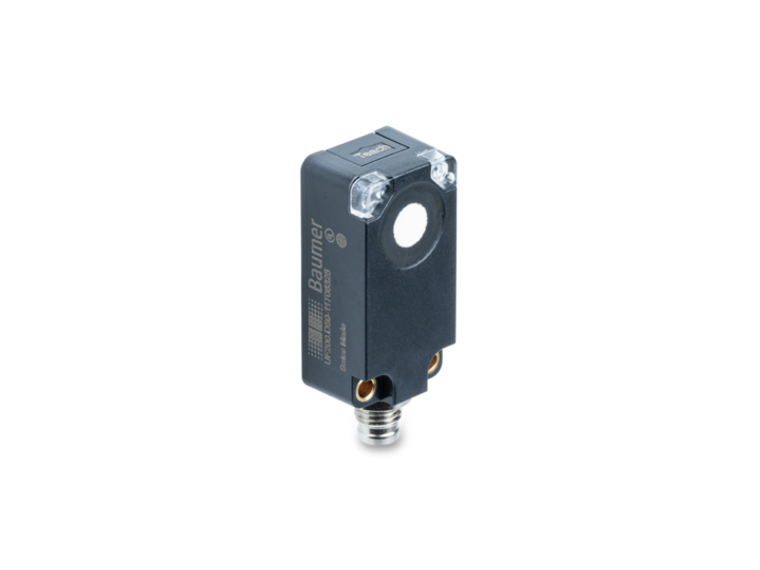

The Baumer UF200.R50-GP1J.72N is an ultrasonic sensor designed for precise distance measurement with a scanning range of 0 to 500 mm. It features IO-Link communication, a reflector position range of 15 to 500 mm, and adjustable reflector ranges for both operating and limit conditions. The sensor offers high repeat accuracy of 0.5 mm and quick response times as low as 16 ms. It is equipped with temperature and power-up drift compensation, operates at a sonic frequency of 290 kHz, and includes multiple adjustment options such as qTeach, line-Teach, and IO-Link. Visual alignment is aided by a flashing light indicator and status is easily monitored with LED indicators for power and operation. The sensor's robust design includes a plastic housing, is rated IP 67 for protection against dust and water, and operates within a temperature range of -25 to +65 °C. It supports a voltage supply range of 12 to 30 VDC and includes safety features such as short circuit and reverse polarity protection. The compact dimensions make it suitable for various applications, and it connects via an M8 4-pin connector.
- Scanning range Sd:
- 0 500 mm
- Reflector position Sde:
- 15 500 mm
- Adjusting range reflector (operating range):
- ± 2,5 % Sde
- Adjusting range reflector (limit range):
- ± 5 % Sde
- Version:
- IO-Link
- Repeat accuracy:
- 0.5 mm
- Response time ton/toff min:
- < 16 ms
- Response time ton/toff standard:
- < 40 ms
- Temperature drift:
- < 2 % of distance to target Sde
- Power-up drift:
- Compensated after 15 min.
- Sonic frequency:
- 290 kHz
- Adjustment:
- qTeach, line-Teach, IO-Link
- Alignment aid:
- Light indicator flashing
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 12 mA
- Output circuit:
- Push-pull
- Output current:
- <100 mA
- Voltage drop Vd:
- <3 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 20.5 mm
- Height / length:
- 41 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
