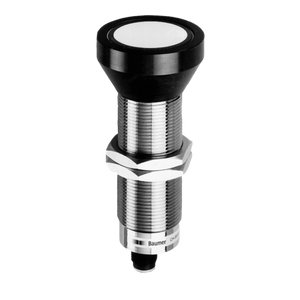

Baumer UNAM 12U9912/S14 10156844
Baumer
$757.00
The Baumer UNAM 12U9912/S14 10156844 is a high-precision ultrasonic sensor designed for distance measurement within a range of 60 to 400 mm. It features a repeat accuracy of 0.5 mm and a resolution of less than 0.3 mm, ensuring precise readings. The sensor operates with a response and release time of less than 60 ms and has a sonic frequency of 290 kHz. It includes external Teach-in for easy adjustment and dual LED indicators for alignment and status updates. The sensor is powered by a 15 to 30 VDC supply, consumes a maximum of 35 mA, and supports a voltage output signal of 0 to 10 V or 10 to 0 V. It is equipped with short circuit and reverse polarity protection, enhancing its reliability. The cylindrical, nickel-plated brass housing measures 12 mm in diameter and 70 mm in length, and it connects via an M12 connector. Suitable for operating temperatures from -10 to +60 °C, the sensor is IP67 rated, ensuring protection against dust and water ingress.
- Scanning range Sd:
- 60 400 mm
- Scanning range close limit Sdc:
- 60 400 mm
- Scanning range far limit Sde:
- 60 400 mm
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton:
- < 60 ms
- Release time toff:
- < 60 ms
- Temperature drift:
- > 50 mm < 2 % of distance to target Sde
- Sonic frequency:
- 290 kHz
- Adjustment:
- External Teach-in
- Alignment aid:
- Target indication flashing
- Light indicator:
- Yellow LED / red LED
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Voltage output
- Output signal:
- 0 ... 10 V / 10 ... 0 V
- Output current:
- 20 mA
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 12 mm
- Height / length:
- 70 mm
- Connection types:
- Connector M12
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
