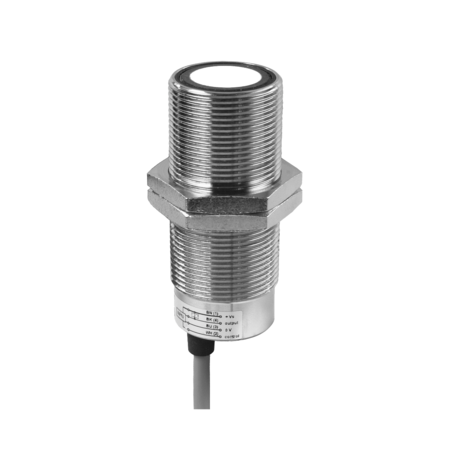

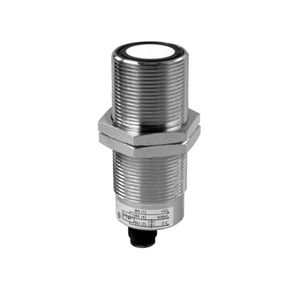

The Baumer UNAM 30N3104 10224451 is an ultrasonic sensor with a scanning range of 200 to 1500 mm and features a repeat accuracy of 1 mm. It operates with a sonic frequency of 200 kHz and includes a potentiometer for adjustments. The sensor provides visual alignment aid through target indication flashing and has a green LED output indicator. It supports a voltage supply range of 12 to 30 VDC and consumes a maximum of 30 mA with no load. The output circuit is an NPN break function (NC) with an output current of 200 mA. It offers short circuit and reverse polarity protection, ensuring durability and reliability. The cylindrical threaded housing is made of brass nickel-plated material, measuring 30 mm in width/diameter and 70 mm in height/length. It connects via a 2-meter cable and operates within a temperature range of -25 to +60 °C. The sensor is IP 67 rated, indicating a high level of protection against dust and water ingress.
- Scanning range Sd:
- 200 1500 mm
- Scanning range far limit Sde:
- 200 1500 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 1 mm
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 100 ms
- Release time toff:
- < 100 ms
- Sonic frequency:
- 200 kHz
- Adjustment:
- Potentiometer
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 30 mA
- Output circuit:
- NPN break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 30 mm
- Height / length:
- 70 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
