Baumer UNAM 30P1104 10224444
Baumer

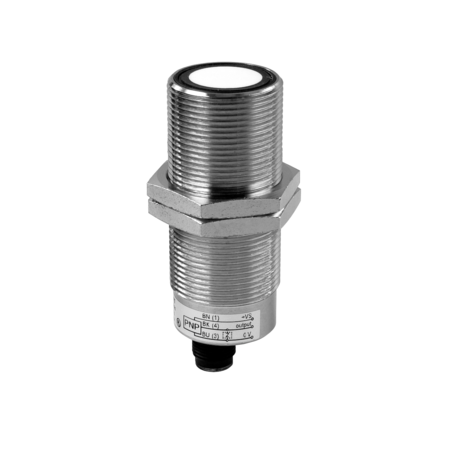

The Baumer UNAM 30P1104/S14 10233667 is an ultrasonic sensor with a scanning range of 200 to 1500 mm and features a repeat accuracy of 1 mm. It operates at a sonic frequency of 200 kHz and includes a potentiometer for adjustments. The sensor provides visual alignment aid through target indication flashing and has a green LED output indicator. It supports a voltage supply range of 12 to 30 VDC and consumes a maximum of 30 mA with no load. The output circuit is a PNP make function (NO) with an output current of 200 mA. It offers short circuit and reverse polarity protection, and operates efficiently with a response and release time of less than 100 ms each. The cylindrical threaded housing is made of brass nickel-plated material, measuring 30 mm in width/diameter and 70 mm in height/length. It connects via an M12 connector and operates within a temperature range of -25 to +60 °C. The sensor is IP 67 rated, ensuring protection against dust and water ingress.
- Scanning range Sd:
- 200 1500 mm
- Scanning range far limit Sde:
- 200 1500 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 1 mm
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 100 ms
- Release time toff:
- < 100 ms
- Sonic frequency:
- 200 kHz
- Adjustment:
- Potentiometer
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 30 mA
- Output circuit:
- PNP make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 30 mm
- Height / length:
- 70 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
