Baumer UNAM 50N3721/S14 10232794
Baumer
$994.00

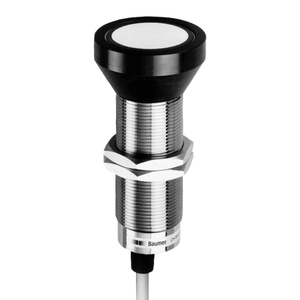

The Baumer UNAM 50N3721/S14 10232794 is an ultrasonic sensor with a scanning range of 350 to 2500 mm and features a repeat accuracy of 1 mm. It includes synchronization capabilities and a response and release time of less than 160 ms. The sensor operates at a sonic frequency of 120 kHz and can be adjusted via a potentiometer. It includes a target indication flashing for alignment aid and a green LED output indicator. The sensor is powered by a 12 to 30 VDC supply, consumes a maximum of 35 mA with no load, and supports an output current of 200 mA with NPN break function (NC). It offers short circuit and reverse polarity protection, operates within a temperature range of -25 to +60 °C, and is housed in a cylindrical, nickel-plated brass body measuring 30 mm in diameter and 95 mm in length. The connection is facilitated through an M12 connector, and it is rated IP 67 for protection against dust and water ingress.
- Scanning range Sd:
- 350 2500 mm
- Scanning range far limit Sde:
- 350 2500 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 1 mm
- Synchronization:
- Yes
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 160 ms
- Release time toff:
- < 160 ms
- Sonic frequency:
- 120 kHz
- Adjustment:
- Potentiometer
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- NPN break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 30 mm
- Height / length:
- 95 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
