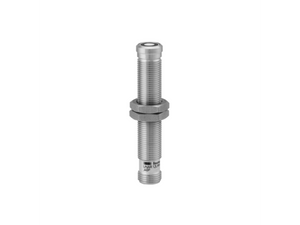

The Baumer UNAR 12P3914/S14H 11182700 is a chemically robust ultrasonic sensor designed for precise distance measurement within a range of 10 to 200 mm. It features a far scanning range limit of 30 to 200 mm with a typical hysteresis of 4% and repeat accuracy of 0.5 mm. The sensor operates with a sonic frequency of 380 kHz and has a quick response and release time of less than 10 ms each. It is equipped with external Teach-in for easy adjustment and does not include an LED alignment aid. Certified by Ecolab, it ensures reliability in harsh environments. This sensor is powered by a 12 to 30 VDC supply, with a maximum current consumption of 35 mA when idle. It supports a PNP break function (normally closed) output circuit with an output current of 200 mA and a voltage drop of less than 2 VDC. It also features short circuit and reverse polarity protection. The cylindrical threaded design, made from stainless steel 1.4404 (V4A) and coated with Parylene, along with an EPDM O-ring, ensures durability against chemical exposure and physical pressures up to 6 bar. Dimensions include a width/diameter of 12 mm and a length of 70 mm, with an M12 connector type for connectivity. Operating temperatures range from 0 to +60 °C, and it boasts an IP 67 protection class, making it suitable for a variety of industrial applications where precision and robustness are required.
- Special type:
- Chemically robust
- Scanning range Sd:
- 10 200 mm
- Scanning range far limit Sde:
- 30 200 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 10 ms
- Release time toff:
- < 10 ms
- Sonic frequency:
- 380 kHz
- Adjustment:
- External Teach-in
- Alignment aid:
- No LED
- Approvals/certificates:
- Ecolab
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- PNP break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Stainless steel 1.4404 (V4A)
- Coating active face:
- Parylene
- Material O-ring:
- EPDM
- Front of sensor durable against pressure:
- 6 bar, 20'000 cycle
- Width / diameter:
- 12 mm
- Height / length:
- 70 mm
- Connection types:
- Connector M12
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
