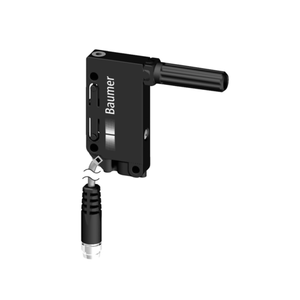

The Baumer UNCK 09G6914/KS35AD1 11007885 is a high-precision ultrasonic sensor with a scanning range of 3 to 150 mm and a repeat accuracy of 0.5 mm. It features a hysteresis of approximately 4% Sde and a temperature drift of less than 0.18% Sde/K. The sensor operates with a response and release time of less than 7 ms and a sonic frequency of 380 kHz. It includes a teach-in adjustment, target indication flashing for alignment aid, and dual-color LED output indicators. The sensor is powered by a 12 to 30 VDC supply, consumes a maximum of 35 mA with no load, and supports a push-pull output circuit with a maximum output current of 100 mA. It offers short circuit and reverse polarity protection, housed in a durable PA 12 rectangular casing measuring 8.6 mm in width, 82 mm in length, and 24.5 mm in depth. The sensor is equipped with a flylead connector M8 and operates within a temperature range of 0 to +60 °C, boasting an IP 67 protection class for robust handling in various environments.
- Scanning range Sd:
- 3 150 mm
- Scanning range far limit Sde:
- 3 150 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 7 ms
- Release time toff:
- < 7 ms
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- Green LED / red LED
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PA 12
- Width / diameter:
- 8.6 mm
- Height / length:
- 82 mm
- Depth:
- 24.5 mm
- Connection types:
- Flylead connector M8, L=200 mm
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
