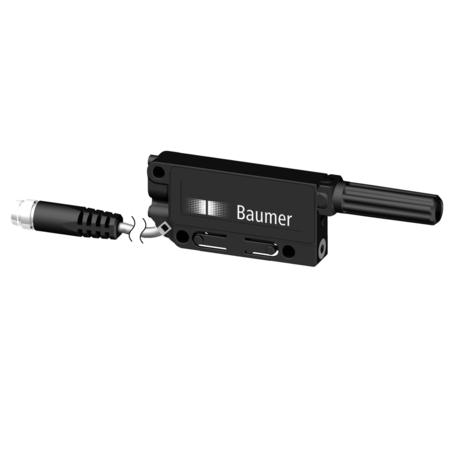

Baumer UNCK 09T9114/KS35AD1 11004101
Baumer
The Baumer UNCK 09T9114/KS35AD1 11004101 is a high-precision ultrasonic sensor with a scanning range of 3 to 150 mm. It features exceptional repeat accuracy of 0.5 mm, which improves to less than 0.1 mm with an active filter. The sensor's resolution is less than 0.3 mm, enhancing to less than 0.1 mm with the filter. It has a quick response time of less than 7 ms and minimal temperature drift. The device operates at a sonic frequency of 380 kHz and includes helpful alignment aids such as target indication flashing and dual-color LED indicators. It supports a voltage supply range of 15 to 30 VDC and has a maximum current consumption of 35 mA with no load. Communication is facilitated through an RS232 output circuit with a baud rate of 115200. Safety features include short circuit and reverse polarity protection. The sensor's robust design includes a PA 12 housing and POM beam columnator, measuring 8.6 mm in width, 82 mm in height, and 24.5 mm in depth. It connects via a flylead connector M8 and operates within a temperature range of 0 to +60 °C. The device is IP 67 rated, ensuring protection against dust and water ingress.
- Scanning range Sd:
- 3 150 mm
- Scanning range close limit Sdc:
- 3 150 mm
- Scanning range far limit Sde:
- 3 150 mm
- Repeat accuracy:
- 0.5 mm
- Repeat accuracy (filter active):
- < 0.1 mm
- Resolution:
- < 0.3 mm
- Resolution (filter active):
- < 0.1 mm
- Response time ton:
- < 7 ms
- Temperature drift:
- < 0,18 % Sde/K (comp. off, factory set) < 2 % So (compensation on)
- Sonic frequency:
- 380 kHz
- Alignment aid:
- Target indication flashing
- Light indicator:
- Yellow LED / red LED
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- RS232
- Baud rate:
- 115200
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- PA 12
- Material (beam columnator):
- POM
- Width / diameter:
- 8.6 mm
- Height / length:
- 82 mm
- Depth:
- 24.5 mm
- Connection types:
- Flylead connector M8, L=200 mm
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
