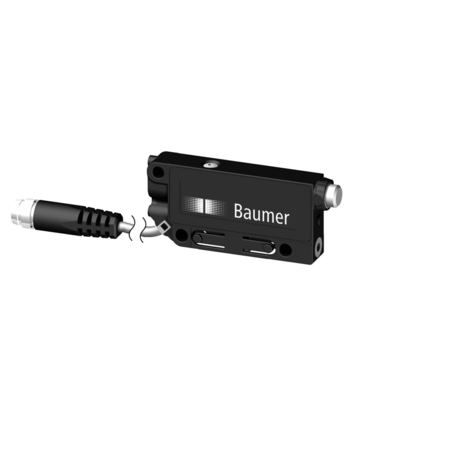

The Baumer UNCK 09U6914/KS35A 11011511 is a high-precision ultrasonic sensor designed for versatile applications requiring distance measurement within a range of 30 to 200 mm. It offers exceptional repeat accuracy of 0.5 mm and a resolution of less than 0.3 mm, ensuring reliable and accurate sensing performance. The sensor features a fast response and release time of less than 35 ms, minimal temperature drift, and operates at a sonic frequency of 380 kHz. It includes user-friendly features such as Teach-in adjustment, target indication flashing for easier alignment, and dual-color LED status indicators. The robust rectangular housing is made from PA 12, measuring 8.6 mm in width, 55 mm in length, and 24.5 mm in depth, and is equipped with a flylead connector M8. It supports a voltage supply range of 15 to 30 VDC and includes safety features like short circuit and reverse polarity protection. Suitable for use in demanding environments, it operates within a temperature range of 0 to +60 °C and boasts an IP 67 protection rating, ensuring durability and resistance to dust and water ingress.
- Scanning range Sd:
- 30 200 mm
- Scanning range close limit Sdc:
- 30 200 mm
- Scanning range far limit Sde:
- 30 200 mm
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton:
- < 35 ms
- Release time toff:
- < 35 ms
- Temperature drift:
- > 50 mm < 2 % of distance to target Sde
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Light indicator:
- Yellow LED / red LED
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Voltage output
- Output signal:
- 0 ... 10 V / 10 ... 0 V
- Output current:
- 15 mA
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PA 12
- Width / diameter:
- 8.6 mm
- Height / length:
- 55 mm
- Depth:
- 24.5 mm
- Connection types:
- Flylead connector M8, L=200 mm
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
