Baumer UNDK 09G8914 11011515
Baumer
The Baumer UNDK 09G8914 11011515 is an ultrasonic sensor with a scanning range of 30 to 200 mm and a repeat accuracy of 0.5 mm. It features a hysteresis of approximately 4% and a temperature drift of less than 0.18% per Kelvin. The response and release times are both under 7 ms, and it operates at a sonic frequency of 380 kHz. This sensor is equipped with a teach-in adjustment, target indication flashing for alignment aid, and dual-color LED output indicators. It supports a voltage supply range of 12 to 30 VDC, consumes a maximum of 35 mA with no load, and has a push-pull output circuit with a maximum output current of 100 mA. The voltage drop is less than 2 VDC, and it includes short circuit and reverse polarity protection. The sensor's housing is made of PA 12, measuring 8.6 mm in width, 48.8 mm in height, and 30.5 mm in depth, and it is connected via a 2-meter PUR cable. It operates within a temperature range of 0 to +60 °C and is rated IP 67 for protection against dust and water ingress.
- Scanning range Sd:
- 30 200 mm
- Scanning range far limit Sde:
- 30 200 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 7 ms
- Release time toff:
- < 7 ms
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- Green LED / red LED
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PA 12
- Width / diameter:
- 8.6 mm
- Height / length:
- 48.8 mm
- Depth:
- 30.5 mm
- Connection types:
- Cable PUR 4 x 0,08, 2 m
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
Related Products
-
-
-
-

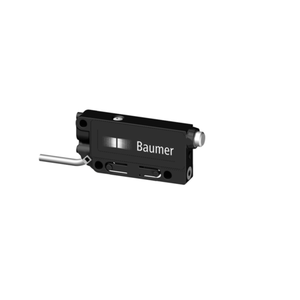

Baumer UNCK 09G8914 11011507
