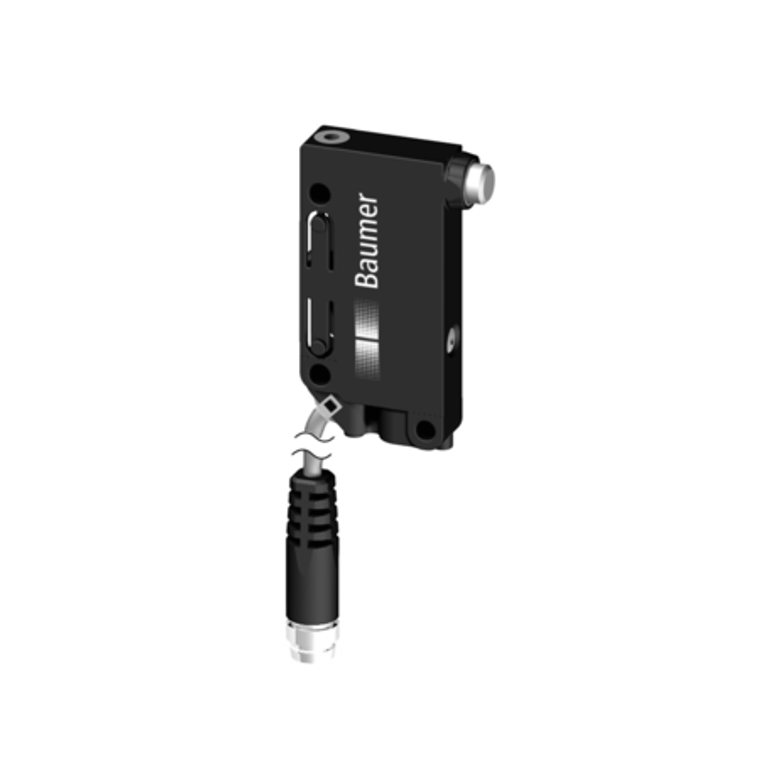

The Baumer UNDK 09G8914/KS35A/IO is a high-precision ultrasonic sensor with a scanning range of 30 to 200 mm. It features IO-Link communication, repeat accuracy of 0.5 mm, and enhanced accuracy with active filter (<0.1 mm). The sensor offers a resolution of less than 0.3 mm, improving to less than 0.1 mm with the filter active. It has a quick response time of less than 7 ms and minimal temperature drift. Operating at a sonic frequency of 380 kHz, it includes teach-in and IO-Link for easy adjustment, along with visual alignment aids through flashing target indication and dual-color LED status indicators. The sensor is powered by a voltage supply range of 18 to 30 VDC and consumes a maximum of 35 mA with no load. It supports a push-pull / IO-Link output circuit and includes safety features like short circuit and reverse polarity protection. The rectangular housing is made from durable PA 12, measuring 8.6 mm in width, 48.8 mm in height, and 30.5 mm in depth, with an M8 flylead connector. It operates within a temperature range of 0 to +60 °C and is IP 67 rated for protection against dust and water ingress.
- Scanning range Sd:
- 30 200 mm
- Scanning range close limit Sdc:
- 30 200 mm
- Scanning range far limit Sde:
- 30 200 mm
- Version:
- IO-Link
- Repeat accuracy:
- 0.5 mm
- Repeat accuracy (filter active):
- < 0.1 mm
- Resolution:
- < 0.3 mm
- Resolution (filter active):
- < 0.1 mm
- Response time ton:
- < 7 ms
- Temperature drift:
- > 50 mm < 2 % of distance to target Sde
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in and IO-Link
- Alignment aid:
- Target indication flashing
- Light indicator:
- Green LED / red LED
- Voltage supply range +Vs:
- 18 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Push-pull / IO-Link
- Baud rate:
- 38400
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PA 12
- Width / diameter:
- 8.6 mm
- Height / length:
- 48.8 mm
- Depth:
- 30.5 mm
- Connection types:
- Flylead connector M8, L=200 mm
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
