Description

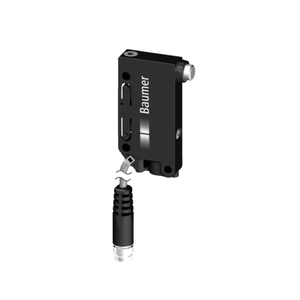

The Baumer UNDK 09U6914 11011517 is a high-precision ultrasonic sensor designed for versatile applications, featuring a scanning range of 30 to 200 mm with consistent repeat accuracy of 0.5 mm and resolution under 0.3 mm. It operates with a response and release time of less than 35 ms each, ensuring quick and reliable readings. The sensor is equipped with a sonic frequency of 380 kHz and offers easy configuration via Teach-in adjustment. Visual alignment and status are indicated by flashing target indication and dual-color LEDs (yellow and red). It supports a voltage supply range of 15 to 30 VDC and has a maximum current consumption of 35 mA when idle. Output options include a variable voltage signal from 0 to 10 V or 10 to 0 V, with an output current capacity of 15 mA. Enhanced durability is ensured with features like short circuit and reverse polarity protection. The sensor's robust rectangular housing is made from PA 12, measuring 8.6 mm in width, 48.8 mm in length, and 30.5 mm in depth, and it includes a 2-meter PUR cable for connections. Suitable for operating temperatures from 0 to +60 °C, it boasts an IP 67 protection class, making it ideal for challenging environments.
