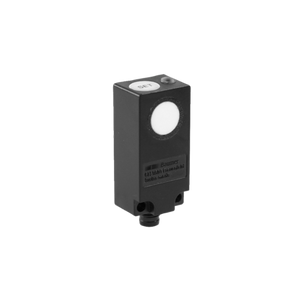

The Baumer UNDK 20P6903/S35A 10159513 is an ultrasonic sensor with a scanning range of 100 to 1000 mm and features a repeat accuracy of 0.5 mm. It operates with a sonic frequency of 240 kHz and includes a Teach-in adjustment for easy setup. The sensor has a quick response and release time of less than 50 ms, and it is equipped with LED indicators for status updates. It supports a voltage supply range of 12 to 30 VDC and has a maximum output current of 200 mA. The sensor is designed with a durable polyester housing, measures 20 mm in width, 42 mm in height, and 15 mm in depth, and connects via an M8 connector. Suitable for operating temperatures from -10 to +60 °C, it offers protection against short circuits, reverse polarity, and is rated IP 67 for water and dust resistance.
- Scanning range Sd:
- 100 1000 mm
- Scanning range far limit Sde:
- 100 1000 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 50 ms
- Release time toff:
- < 50 ms
- Sonic frequency:
- 240 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- PNP make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester
- Width / diameter:
- 20 mm
- Height / length:
- 42 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
