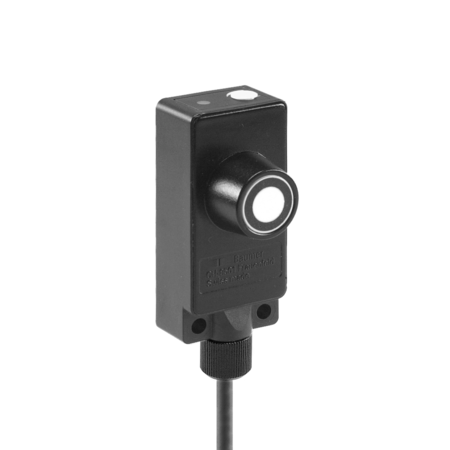

Baumer UNDK 30P3712 10233662
Baumer
$1,009.00

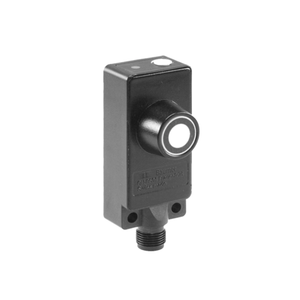

The Baumer UNDK 30P3712 10233662 is a high-performance ultrasonic sensor designed for precise distance measurement within a scanning range of 60 to 400 mm. It features a repeat accuracy of 0.5 mm and a response time of less than 25 ms, ensuring quick and reliable readings. The sensor is equipped with synchronization capabilities and offers a multiplex version upon request. It operates at a sonic frequency of 400 kHz and includes a potentiometer for easy adjustment. For alignment, it provides a target indication that flashes, and a green LED output indicator for clear status visibility. This sensor supports a voltage supply range of 12 to 30 VDC and has a maximum current consumption of 35 mA. It includes a PNP break function (NC) output circuit with an output current of 200 mA and a voltage drop of less than 2 VDC. The device is built to withstand harsh conditions with a polyester and die-cast zinc housing, measuring 30 mm in width, 65 mm in height, and 31 mm in depth. It also features a 2-meter cable connection, operates within a temperature range of -25 to +60 °C, and is rated IP 67 for dust and water resistance. Safety features include short circuit and reverse polarity protection, ensuring robust and secure operation in diverse industrial environments.
- Scanning range Sd:
- 60 400 mm
- Scanning range far limit Sde:
- 60 400 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Synchronization:
- Yes
- Multiplex version:
- On request
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton (sync on):
- < 25 ms
- Release time toff (sync on):
- < 25 ms
- Sonic frequency:
- 400 kHz
- Adjustment:
- Potentiometer
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- PNP break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester / die-cast zinc
- Width / diameter:
- 30 mm
- Height / length:
- 65 mm
- Depth:
- 31 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
