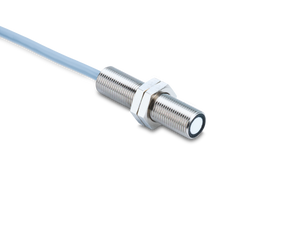

The Baumer UR12.TA0-ZZZX.7BF is an ultrasonic emitter with a scanning range of 0 to 1000 mm and operates at a sonic frequency of 310 kHz. It features a green LED power indicator and is powered by a 12 to 30 VDC supply, consuming a typical 25 mA. The device includes short circuit and reverse polarity protection, ensuring reliable operation. Its cylindrical, nickel-plated brass housing measures 12 mm in diameter and 50 mm in length, and it connects via an M12 5-pin connector. The emitter can withstand operating temperatures from -25 to +65 °C and is rated IP 67 for protection against dust and water ingress. Ideal for various industrial applications, it ensures precision and durability in challenging environments.
- Emitter / receiver:
- Emitter
- Scanning range Sd:
- 0 1000 mm
- Scanning range far limit Sde:
- 0 1000 mm
- Sonic frequency:
- 310 kHz
- Power on indication:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 25 mA
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 12 mm
- Height / length:
- 50 mm
- Connection types:
- Connector M12 5 pin
- Tightening torque max.:
- 15 Nm (Front: 10 Nm)
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
