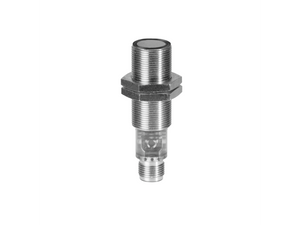

Baumer UR18.DA0.2-IAMJ.9SF/B044
Baumer
The Baumer UR18.DA0.2-IAMJ.9SF/B044 is a high-performance sensor designed for precision measurement and monitoring in industrial applications. This model features robust construction and advanced technology, ensuring reliable operation in challenging environments. Ideal for automation systems, it offers exceptional accuracy and durability, making it a valuable component in any setup requiring precise data acquisition.
- Type:
- Distance measuring
- Version:
- OM70 laser point basic
- Measuring distance Sd:
- 100 1000 mm
- Measuring range Mr:
- 900 mm
- Sweet spot:
- 1000 mm
- Adjustment:
- Webserver, Ethernet TCP/IP
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Ethernet link indication:
- LED blue
- Resolution:
- 3 63 µm
- Repeat accuracy:
- 1 32 µm
- Linearity error:
- ± 0.19 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,065 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2000 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and digital
- Output signal:
- 4 ... 20 mA / 2 ... 10 mA / 0 ... 10 VDC / 0 ... 5 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin & M12 4 pin
- Weight:
- 135 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
- Datasheet:
- View
- Operating Manual:
- View
