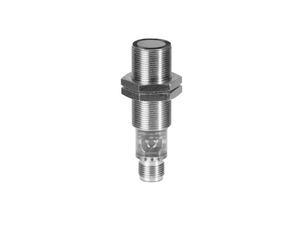

The Baumer UR18.PA0.2-GP2J.9SF 11200645 is a dual-channel IO-Link ultrasonic proximity switch with a scanning range of 20 to 1000 mm. It features a multiplex version with a typical hysteresis of 4% Sde and a repeat accuracy of 0.5 mm. The device compensates for power-up drift after 15 minutes and has a response and release time of less than 40 ms. Operating at a sonic frequency of 200 kHz, it offers various adjustment options including qTeach, line-Teach, and IO-Link. The output indicators include yellow and red LEDs, with a green LED for power indication. It has a cylindrical threaded design with a stainless steel (V2A) and TR90 housing, and a PEEK-coated active face. The sensor has a diameter of 18 mm and a length of 64 mm, and connects via an M12 5-pin connector. It operates within a temperature range of -25 to +65 °C and offers protection classes IP 69 and IP 67 for the device and connection respectively. The sensor is equipped with short circuit and reverse polarity protection, ensuring reliable operation in diverse environments.
- Special type:
- 2 point proximity switch
- Scanning range Sd:
- 20 1000 mm
- Scanning range far limit Sde:
- 20 1000 mm
- Version:
- IO-Link dual channel Multiplex version
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 2 % Sde
- Power-up drift:
- Compensated after 15 min.
- Response time ton:
- < 40 ms
- Release time toff:
- < 40 ms
- Sonic frequency:
- 200 kHz
- Adjustment:
- qTeach, line-Teach, IO-Link
- Output indicator:
- Yellow LED / red LED
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 35 mA
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Voltage drop Vd:
- <3.5 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Stainless steel (V2A) / TR90
- Coating active face:
- PEEK
- Width / diameter:
- 18 mm
- Height / length:
- 64 mm
- Connection types:
- Connector M12 5 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 69
- Protection class (connection):
- IP 67
