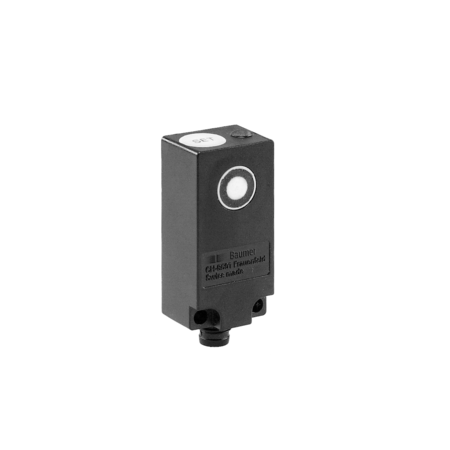

The Baumer URDK 20N6912/S35A 11013746 is a high-performance ultrasonic sensor with a scanning range of 0 to 400 mm and a reflector position range of 100 to 400 mm. It features adjustable reflector ranges for both operating and limit conditions, ensuring precise measurements with a repeat accuracy of 1.5 mm and minimal temperature drift of less than 2% Sde. The sensor has a quick response and release time of less than 25 ms, operates at a sonic frequency of 290 kHz, and includes a teach-in adjustment for easy setup. It is equipped with a target indication flashing for alignment aid, a green LED output indicator, and offers protection against short circuits and reverse polarity. The sensor operates on a 12 to 30 VDC supply, with a maximum current consumption of 35 mA and an output current of 200 mA. Housed in a durable polyester rectangular body measuring 20 mm in width, 42 mm in height, and 15 mm in depth, it connects via an M8 connector and is designed to withstand operating temperatures from -10 to +60 °C. The Baumer URDK 20N6912/S35A is IP 67 rated, indicating a high level of protection against dust and water ingress, making it suitable for a wide range of industrial applications.
- Scanning range Sd:
- 0 400 mm
- Reflector position Sde:
- 100 400 mm
- Adjusting range reflector (operating range):
- ± 2,5 % Sde
- Adjusting range reflector (limit range):
- ± 5 % Sde
- Repeat accuracy:
- 1.5 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 25 ms
- Release time toff:
- < 25 ms
- Sonic frequency:
- 290 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- NPN make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester
- Width / diameter:
- 20 mm
- Height / length:
- 42 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
