Baumer URDK 20N7912/S35A 11013747
Baumer

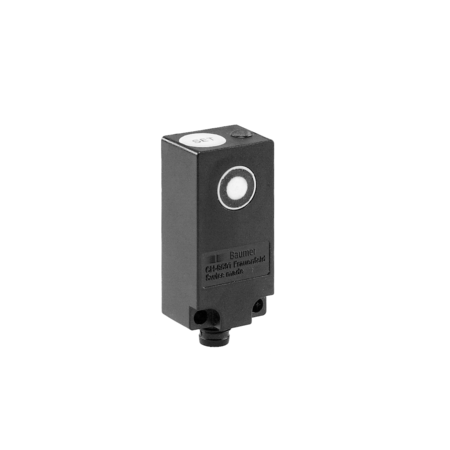

The Baumer URDK 20N7912/S35A 11013747 is a high-performance ultrasonic sensor designed for precise distance measurement within a scanning range of 0 to 400 mm. It features a reflector position range of 100 to 400 mm with an adjusting range for the reflector of ±2.5% for operating and ±5% for limit range. The sensor offers a repeat accuracy of 1.5 mm and is less susceptible to temperature changes with a drift of less than 2% Sde. It has a quick response and release time of less than 25 ms, operates at a sonic frequency of 290 kHz, and includes a teach-in adjustment for easy setup. The alignment aid through target indication flashing and a green LED output indicator enhance usability. It operates on a voltage supply range of 12 to 30 VDC, with a maximum current consumption of 35 mA, and supports an output current of 200 mA. The sensor is equipped with NPN break function output, short circuit and reverse polarity protection, ensuring robust performance. Housed in a durable polyester rectangular body measuring 20 mm in width, 42 mm in height, and 15 mm in depth, it connects via an M8 connector. Suitable for operating temperatures from -10 to +60 °C, it is IP 67 rated, indicating a high level of protection against dust and water ingress.
- Scanning range Sd:
- 0 400 mm
- Reflector position Sde:
- 100 400 mm
- Adjusting range reflector (operating range):
- ± 2,5 % Sde
- Adjusting range reflector (limit range):
- ± 5 % Sde
- Repeat accuracy:
- 1.5 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 25 ms
- Release time toff:
- < 25 ms
- Sonic frequency:
- 290 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- NPN break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester
- Width / diameter:
- 20 mm
- Height / length:
- 42 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
