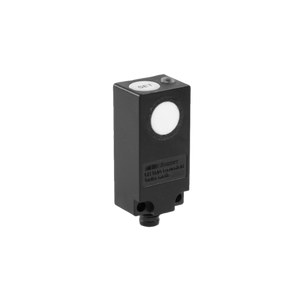

The Baumer URDK 20P6903/S35A 10159517 is an ultrasonic sensor designed for precise distance measurement with a scanning range of 0 to 1000 mm and a reflector position range of 200 to 1000 mm. It features adjustable reflector ranges for both operating and limit conditions, high repeat accuracy of 1.5 mm, and minimal temperature drift. The sensor operates with a quick response and release time of less than 50 ms, and a sonic frequency of 240 kHz. It includes a teach-in adjustment, target indication flashing for easier alignment, and a green LED output indicator. The sensor is powered by a 12 to 30 VDC supply, consumes a maximum of 35 mA, and supports a PNP make function output with a maximum current of 200 mA. It offers robust protection features including short circuit and reverse polarity protection. The compact, rectangular polyester housing measures 20 mm in width, 42 mm in height, and 15 mm in depth, and connects via an M8 connector. Suitable for operating temperatures from -10 to +60 °C, it is IP 67 rated for dust and water resistance.
- Scanning range Sd:
- 0 1000 mm
- Reflector position Sde:
- 200 1000 mm
- Adjusting range reflector (operating range):
- ± 2,5 % Sde
- Adjusting range reflector (limit range):
- ± 5 % Sde
- Repeat accuracy:
- 1.5 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 50 ms
- Release time toff:
- < 50 ms
- Sonic frequency:
- 240 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- PNP make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester
- Width / diameter:
- 20 mm
- Height / length:
- 42 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
