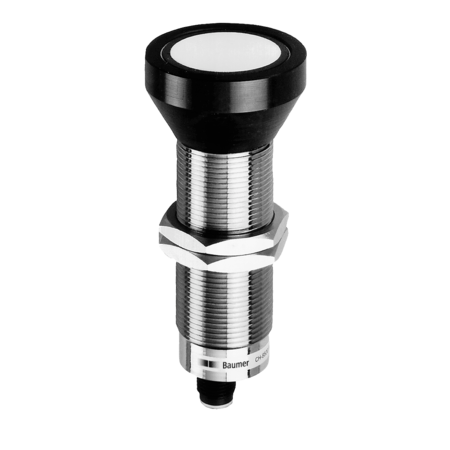

Baumer UZAM 50N6121/S14 10129063
Baumer
Baumer UZAM 50N6121/S14 10129063 is a 2-point proximity switch with a scanning range of 350 to 2500 mm and a repeat accuracy of 1 mm. It features a hysteresis of approximately 4% Sde and a temperature drift of less than 2% Sde. The response and release times are both under 160 ms, and it operates at a sonic frequency of 120 kHz. This model includes a Teach-in adjustment, target indication flashing for alignment aid, and dual-color LED output indicators. It supports a voltage supply range of 12 to 30 VDC, consumes a maximum of 40 mA with no load, and has an output current of 200 mA. The output circuit is an NPN make function (NO) with a voltage drop of less than 2 VDC and residual ripple under 10% Vs. It includes short circuit and reverse polarity protection. The cylindrical threaded housing is made of brass nickel-plated, measuring 30 mm in width/diameter and 95 mm in height/length, and connects via an M12 connector. Suitable for operating temperatures from -10 to +60 °C, it is rated IP 67 for protection against dust and immersion.
- Special type:
- 2 point proximity switch
- Scanning range Sd:
- 350 2500 mm
- Scanning range far limit Sde:
- 350 2500 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 1 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 160 ms
- Release time toff:
- < 160 ms
- Sonic frequency:
- 120 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- Green / yellow LED
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Output circuit:
- NPN make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 30 mm
- Height / length:
- 95 mm
- Connection types:
- Connector M12
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
