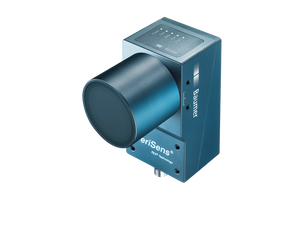

The Baumer VS XC900M20X00IP is a high-performance industrial camera featuring a 1/1.8? CCD monochrome sensor with a resolution of 1600 × 1200 px. It offers two operational modes: a high-resolution mode with up to 21 inspections per second and a high-speed mode with up to 35 inspections per second at a reduced resolution. The camera supports up to 255 different jobs, with each job capable of handling up to 32 features. It includes an integrated VeriFlash® flash controller for direct illumination connections and uses Baumer FEX® 4.0 for advanced signal processing. The camera is equipped with a C-mount lens and has a robust aluminum housing. It operates on a 24 V ±25% power supply and consumes a maximum of 42 W. Connectivity options include Ethernet, PROFINET, EtherNet/IP, and TCP/UDP, with a configurable web interface for visualization. The camera's dimensions are 53 mm in width, 99.5 mm in height, and 49.8 mm in depth, and it weighs less than 300 g without the lens or tube.
- Resolution:
- 1600 × 1200 px
- Sensor type:
- 1/1.8? CCD, monochrome
- Illumination:
- external, available as accessory
- Illumination connection:
- direct (integrated VeriFlash® flash controller)
- High-resolution mode:
- max. 21 inspections per second
- High-speed mode (limited resolution):
- max. 35 inspections per second
- Number of jobs (products):
- ? 255
- Features per job:
- 32
- Signal processing:
- Baumer FEX® 4.0
- Defect image memory:
- 4
- Lens:
- C-mount
- Nominal voltage power supply:
- 24 V ±25 %
- Nominal voltage power supply (add-on):
- Class 2 according to NEC / protection class III
- Nominal voltage power supply (info):
- The device is intended for supply from an isolated limited power source according to UL61010-1, 3rd ed cl. 9.4 or a limited energy source according to UL60950-1 or Class 2 according to NEC.
- Power consumption:
- Max. 42 W (with I/O and lighting)
- Inputs:
- 8 30 V (polarity protected)
- Digital inputs:
- 5 inputs trigger job selection external teach-in encoders (CH-A, CH-B) 500 kHz
- Outputs:
- PNP Ipeak = 100 mA and Ieff = 50 mA (short-circuit proof)
- Digital outputs:
- 5 outputs Pass / Fail Flash Sync Alarm Camera Ready Output Enable
- Initial setup:
- Ethernet (10BASE-T / 100BASE-TX)
- Process interface:
- PROFINET (CC-A) EtherNet/IP TCP/UDP (Ethernet) Universal Robot Mode
- Visualization:
- configurable web interface with MultiViewer function
- Width:
- 53 mm (without lens/tube)
- Height:
- 99.5 mm (without lens/tube)
- Depth:
- 49.8 mm (without lens/tube)
- Weight:
- ? 300 g (without lens/tube)
- Material:
- housing: aluminum cover glass XC tube: PMMA
