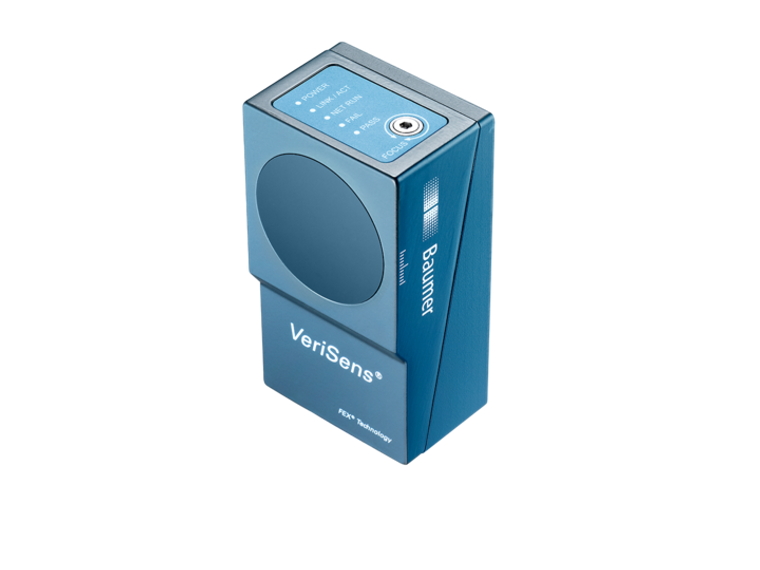

The Baumer VS XF800M03I08IP is a high-performance vision sensor featuring a 1/3? CMOS monochrome sensor with a resolution of 752 × 480 px. It includes integrated LED infrared illumination (860 nm) and operates safely within the free group LED class as per EN 62471:2008 standards. The device offers two operational modes: a high-resolution mode with up to 50 inspections per second and a high-speed mode with limited resolution at up to 100 inspections per second. It can handle object distances ranging from 50 mm to 450 mm and manage up to 255 jobs with 32 features per job. The sensor is equipped with Baumer FEX® 4.0 signal processing, a defect image memory for 32 images, and an 8 mm lens. It requires a nominal voltage power supply of 24 V ±25% and consumes a maximum of 18 W with I/O. The sensor includes multiple digital inputs and outputs for enhanced connectivity and control, and it supports Ethernet, PROFINET, EtherNet/IP, and TCP/UDP for network integration. The device's housing is made of aluminum with a PMMA cover glass featuring an integrated daylight filter (780 nm). It measures 53 mm in width, 99.5 mm in height, and 38 mm in depth, and weighs less than 250 g. The sensor's setup and monitoring can be managed through a configurable web interface with a MultiViewer function.
- Resolution:
- 752 × 480 px
- Sensor type:
- 1/3? CMOS, monochrome
- Illumination:
- integrated, LED infrared (860 nm)
- LED class:
- free group (risk free, EN 62471:2008)
- High-resolution mode:
- max. 50 inspections per second
- High-speed mode (limited resolution):
- max. 100 inspections per second
- Object distance min.:
- 50 mm
- Object distance max.:
- 450 mm
- Number of jobs (products):
- ? 255
- Features per job:
- 32
- Signal processing:
- Baumer FEX® 4.0
- Defect image memory:
- 32
- Lens:
- 8 mm
- Nominal voltage power supply:
- 24 V ±25 %
- Nominal voltage power supply (add-on):
- Class 2 according to NEC / protection class III
- Nominal voltage power supply (info):
- The device is intended for supply from an isolated limited power source according to UL61010-1, 3rd ed cl. 9.4 or a limited energy source according to UL60950-1 or Class 2 according to NEC.
- Power consumption:
- Max. 18 W (with I/O)
- Inputs:
- 8 30 V (polarity protected)
- Digital inputs:
- 5 inputs trigger job selection external teach-in encoders (CH-A, CH-B) 500 kHz
- Outputs:
- PNP Ipeak = 100 mA and Ieff = 50 mA (short-circuit proof)
- Digital outputs:
- 5 outputs Pass / Fail Flash Sync Alarm Camera Ready Output Enable
- Initial setup:
- Ethernet (10BASE-T / 100BASE-TX)
- Process interface:
- PROFINET (CC-A) EtherNet/IP TCP/UDP (Ethernet)
- Visualization:
- configurable web interface with MultiViewer function
- Width:
- 53 mm
- Height:
- 99.5 mm
- Depth:
- 38 mm
- Weight:
- ? 250 g
- Material:
- housing: aluminum cover glass: PMMA, integrated daylight filter (780 nm)
