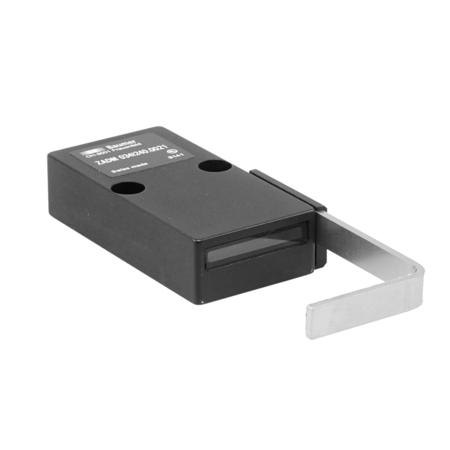

Baumer ZADM 034P240.6921 10159114
Baumer
The Baumer ZADM 034P240.6921 10159114 is a high-performance, switchable distance sensor with a measuring field size of 24 mm and a maximum measuring distance of 40 mm. It features Teach-in adjustment for easy setup and a green LED for power-on indication. The sensor can detect objects as small as 0.5 mm with a resolution of less than 0.1 mm and a hysteresis of 0.4 mm. It utilizes a pulsed infrared diode light source with a wavelength of 880 nm and operates at a measuring frequency of 4000 Hz. The voltage supply range is 12 to 28 VDC, with a maximum current consumption of 120 mA when unloaded. It includes a PNP output circuit with a maximum output current of 100 mA, and offers both short circuit and reverse polarity protection. The response time is less than 0.25 ms, and it has an output pulse length of 10 ms. The sensor supports both light and dark operating modes and has a voltage drop of less than 2.2 VDC. It features a rectangular, front-view design with a width/diameter of 34 mm, an aluminum housing, and a glass front. The connection is facilitated via an M8 4-pin connector. It is rated IP 67 for protection against dust and water ingress and can operate in temperatures ranging from 0 to +55 °C.
- Type:
- Switchable
- Measuring field size:
- 24 mm
- Measuring distance (to object):
- < 40 mm
- Adjustment:
- Teach-in
- Power on indication:
- LED green
- Smallest object recognizable:
- 0.5 mm
- Resolution:
- < 0.1 mm
- Hysteresis:
- 0.4 mmLight source=Pulsed infrared diode
- Wave length:
- 880 nm
- Measuring frequency:
- 4000 Hz
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 120 mA
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Response time:
- < 0.25 ms
- Output pulse length:
- 10 ms
- Output function:
- Light / dark operate
- Voltage drop Vd:
- <2.2 VDC
- Width / diameter:
- 34 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- 0 +55 °C
