Leuze

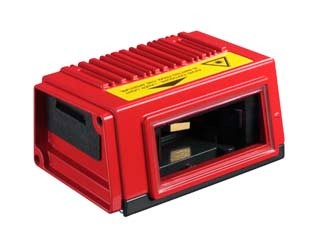

Leuze BCL 300i SM 102 Stationary bar code reader

SKU:

BCL 300i SM 102

UPC:

MPN:

50116220

Condition:

New

Series:

BCL 300i

Functions:

Alignment mode,AutoConfig,AutoControl,AutoReflAct,Code fragment technology,LED indicator,Reference code comparison

Code types, readable:

2/5 Interleaved,Codabar,Code 39,Code 93,Code 128,EAN 8/13,GS1 Databar Expanded,GS1 Databar Limited,GS1 Databar Omnidirectional,UPC

Scanning rate, typical:

1,000 scans/s

Bar codes per reading gate, max. number:

64 Piece(s)

Reading distance:

60 ... 320 mm

Light source:

Laser, Red

Wavelength:

655 nm

Laser class:

1, IEC/EN 60825-1:2014

Modulus size:

0.2 ... 0.5 mm

Reading method:

Line scanner

Beam deflection:

Via rotating polygon wheel

Light beam exit:

Front

Supply voltage UB:

18 ... 30 V, DC

Power consumption, max.:

4.5 W

Number of inputs/outputs selectable:

2 Piece(s)

Type:

RS 232, RS 422

Type:

USB 2.0

Function:

Configuration via software

Number of connections:

1 Piece(s)

Function:

BUS OUT,Connection to device,Data interface,PWR / SW IN / OUT,Service interface

Type of connection:

Plug connector, It is essential to use a connection unit when commissioning the device.

No. of pins:

32 -pin

Type:

Male

Design:

Cubic

Dimension (W x H x L):

95 mm x 44 mm x 68 mm

Housing material:

Metal

Metal housing:

Diecast aluminum

Lens cover material:

Glass

Net weight:

270 g

Housing color:

Red,Silver

Type of fastening:

Dovetail grooves,Fastening on back,Via optional mounting device

Type of display:

LED

Number of LEDs:

2 Piece(s)

Type of configuration:

Via web browser

Ambient temperature, operation:

0 ... 40 °C

Ambient temperature, storage:

-20 ... 70 °C

Relative humidity (non-condensing):

0 ... 90 %

Degree of protection:

IP 65

Protection class:

III

Approvals:

c UL US

Test procedure for EMC in accordance with standard:

EN 55022,EN 61000-4-2, -3, -4, -6

Test procedure for shock in accordance with standard:

IEC 60068-2-27, test Ea

Test procedure for continuous shock in accordance with standard:

IEC 60068-2-29, test Eb

Test procedure for vibration in accordance with standard:

IEC 60068-2-6, test Fc

Customs tariff number:

84719000

ECLASS 5.1.4:

27280102

ECLASS 8.0:

27280102

ECLASS 9.0:

27280102

ECLASS 10.0:

27280102

ECLASS 11.0:

27280102

ECLASS 12.0:

27280102

ECLASS 13.0:

27280102

ECLASS 14.0:

27280102

ECLASS 15.0:

27280102

ETIM 5.0:

EC002550

ETIM 6.0:

EC002550

ETIM 7.0:

EC002550

ETIM 8.0:

EC002550

ETIM 9.0:

EC002550

ETIM 10.0:

EC002550
