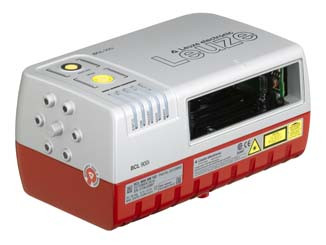

Leuze BCL 900i SN 102 Stationary bar code reader
Leuze
$14,670.00
BCL 900i SN 102 Stationary bar code reader
- Series:
- BCL 900i
- Functions:
- Alignment mode,AutoConfig,Code fragment technology,LED indicator
- Code types, readable:
- 2/5 Interleaved,Codabar,Code 39,Code 93,Code 128,EAN 8/13,EAN 128,EAN Addendum,UPC
- Scanning rate, typical:
- 1,000 scans/s
- Reading distance:
- 525 ... 1,500 mm
- Light source:
- Laser, Red
- Wavelength:
- 650 nm
- Laser class:
- 2, IEC/EN 60825-1:2007
- Modulus size:
- 0.25 ... 0.38 mm
- Reading method:
- Line scanner
- Scanning rate:
- 1,000 scans/s
- Beam deflection:
- Via rotating polygon wheel
- Light beam exit:
- Front
- Supply voltage UB:
- 10 ... 30 V, DC
- Power consumption, max.:
- 10 W
- Number of digital switching inputs:
- 3 Piece(s)
- Number of digital switching outputs:
- 2 Piece(s)
- Type:
- Ethernet, RS 232, RS 422
- Function:
- Process,Service
- Switch functionality:
- Integrated
- Transmission protocol:
- TCP/IP , UDP
- Number of connections:
- 4 Piece(s)
- Function:
- Voltage supply
- Designation on device:
- POWER
- Function:
- Internal communication interface
- Designation on device:
- I/O
- No. of pins:
- 17 -pin
- Designation on device:
- ETH1
- Designation on device:
- ETH2
- Design:
- Cubic
- Dimension (W x H x L):
- 216 mm x 96 mm x 127 mm
- Housing material:
- Metal
- Metal housing:
- Diecast aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,000 g
- Housing color:
- Red,Silver
- Type of fastening:
- Via optional mounting device
- Type of display:
- LED
- Number of LEDs:
- 5 Piece(s)
- Type of configuration:
- Via web browser
- Operational controls:
- Button(s)
- Ambient temperature, operation:
- 0 ... 50 °C
- Ambient temperature, storage:
- -20 ... 70 °C
- Relative humidity (non-condensing):
- 0 ... 90 %
- Degree of protection:
- IP 65
- Approvals:
- c CSA US
- Test procedure for EMC in accordance with standard:
- EN 55022,EN 61000-4-2, -3, -4, -6
- Test procedure for shock in accordance with standard:
- IEC 60068-2-27, test Ea
- Test procedure for continuous shock in accordance with standard:
- IEC 60068-2-29, test Eb
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- Customs tariff number:
- 84719000
- ECLASS 5.1.4:
- 27280102
- ECLASS 8.0:
- 27280102
- ECLASS 9.0:
- 27280102
- ECLASS 10.0:
- 27280102
- ECLASS 11.0:
- 27280102
- ECLASS 12.0:
- 27280102
- ECLASS 13.0:
- 27280102
- ECLASS 14.0:
- 27280102
- ECLASS 15.0:
- 27280102
- ETIM 5.0:
- EC002550
- ETIM 6.0:
- EC002550
- ETIM 7.0:
- EC002550
- ETIM 8.0:
- EC002550
- ETIM 9.0:
- EC002550
- ETIM 10.0:
- EC002550
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
