Leuze BTU 900M-D12 Mounting system
Leuze
$35.00

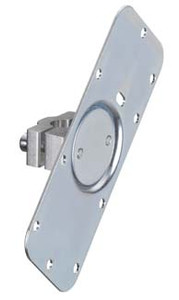

The Leuze BTU 900M-D12 is a metal mounting system designed for secure attachment of sensors or reflectors to a 12 mm rod via through-hole or sheet-metal mounting. It features clampable, rigid, and 360° turning adjustability at the device side using M4 x 10 screws and position washers, enabling precise alignment in optical sensing applications such as distance measurement or photoelectric detection. Constructed from diecast aluminum, it supports compatibility with 46C series sensors, reflectors like TKS 30x50/50x50/40x60, and rod mounts, with a net weight of approximately 24 g.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/btu-900m-d12/50119331
- Product Catalog (Mounting Systems): https://www.leuze.com/en-int/products/accessories/mounting-systems
- Installation Instructions: https://www.leuze.com/en-int/support/downloads/btu-900m-d12-installation-guide
- CAD Data: https://www.leuze.com/en-int/btu-900m-d12/cad-data
- Contains:
- 2x M4 x 20 screw,2x M4 x 25 screw,2x washers with 4,3 mm each
- Suitable for product group:
- Stationary bar code readers
- Suitable for:
- 46C series sensors,BCL 92 series bar code readers,BCL 95 series bar code readers,Reflector (M)TKS 30x50,Reflector (M)TKS 40x60,Reflector TKS 50x50
- Standard designation, metal mounting device:
- Aluminum,Steel, galvanized
- Design of mounting device:
- Mounting system
- Type of fastening, at system:
- For 12 mm rod,Sheet-metal mounting
- Type of fastening, at device:
- Screw type
- Type of mounting device:
- Clampable,Swiveling,Turning, 360
- Mounting device material:
- Metal
- Customs tariff number:
- 83024900
