Leuze BTU D12M.5-045-M8 Mounting system
Leuze
$30.00

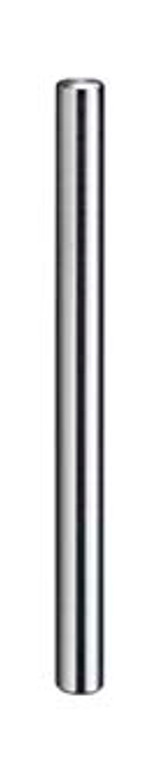

The Leuze BTU D12M.5-045-M8 is a precision mounting system designed for secure installation of photoelectric sensors such as BTU D12M-D12-B090 and BTU D12M-D12-A090. It features a 12 mm diameter stainless steel rod with a length of 45 mm, including an M8 fastening thread for system-side attachment and a mounting bracket compatible with 12 mm round rod designs on the device side. Dimensional tolerances are ±0.2 mm, ensuring reliable alignment in industrial automation and sensing applications.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/products/product-finder/product/btu-d12m-5-045-m8-datasheet
- Installation Instructions: https://www.leuze.com/en-int/support/downloads/installation-guide-btu-d12m-5-045-m8
- Product Catalog (Mounting Systems): https://www.leuze.com/en-int/products/accessories/mounting-systems/btu-series
- CAD Data: https://www.leuze.com/en-int/support/cad-data/btu-d12m-5-045-m8
- Suitable for product group:
- Rod mounts
- Suitable for:
- BTU D12M-D12-A090,BTU D12M-D12-B090
- Design:
- Cylindrical
- Dimension (Ø x L):
- 12 mm x 45 mm
- Standard designation, stainless steel mounting device:
- V2A
- Net weight:
- 35 g
- Housing color:
- Silver
- Design of mounting device:
- 12 mm rod
- Type of fastening, at system:
- Mounting thread
- Type of fastening, at device:
- Clampable
- Type of mounting device:
- Rigid
- Mounting device material:
- Stainless steel
- Customs tariff number:
- 73181595
