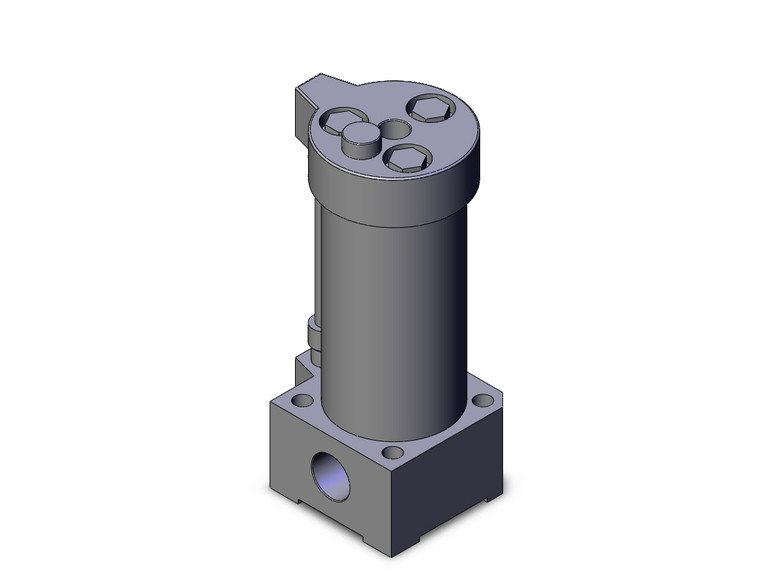

The SMC CCT63-50 Air Hydro Tank is an advanced solution for engineers and manufacturing professionals seeking precision and reliability in pneumatic systems. This air-hydro converter seamlessly integrates a converter and valve unit, transforming air pressure into equivalent hydraulic pressure. This conversion addresses the inherent challenges of air compression, ensuring consistent actuator operation akin to hydraulic systems.
Engineered for precision, the CCT63-50 excels in maintaining a steady speed during start-up and under varying load conditions, effectively eliminating issues like sticking and slipping in low-speed operations. This makes it an ideal choice for applications requiring accurate and constant cylinder speed, intermediate stopping, skip movement, or slow rotary actuator operations.
Key technical specifications include a converter size of 63mm, with a stroke range from 50mm to 800mm. It operates efficiently within a pressure range of 0 to 0.7MPa, with a proof pressure of 1.05MPa, utilizing turbine oil with a viscosity of 40 to 100cSt as the working fluid.
For detailed technical insights, refer to the [Series Catalog](https://content2.smcetech.com/pdf/CC_2016.pdf). Optimize your pneumatic systems with the SMC CCT63-50 Air Hydro Tank, where precision meets performance.
- Nominal Size:
- 63mm
- Stroke:
- 50mm
