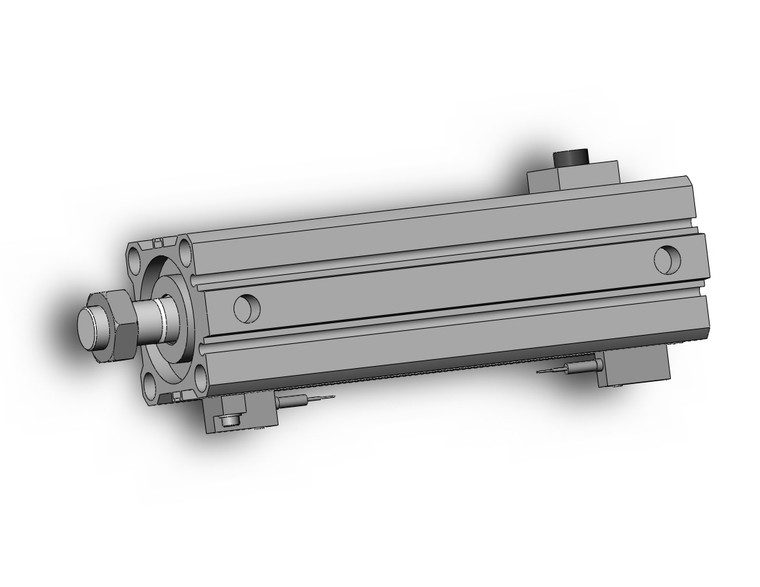

SMC CDBQ2B40-100DCM-HN-A73HZ Cyl, Compact, Locking, Sw Capable

SMC CDBQ2B40-100DCM-HN-A73HZ CBQ2 Series Compact Cylinder

SMC
SKU:
CDBQ2B40-100DCM-HN-A73HZ
Availability:
Factory Stock
$218.20
Condition:
New
Current Stock:
Description

CBQ2 Series Compact Cylinder

  • Sizes 4, 6, and 10 have been added [New];
  • 4 to 200 lineup;
  • Space-saving cylinder designed with a compact body;
  • It is possible to mount small auto switches on 4 surfaces. (2 surfaces; for 12 to 25);
  • No projection of auto switch;
  • Lighter weight: Reduced by 5 to 13% (compared with the existing; CQ2 series);
  • Added pivot brackets for double clevis and compact type foot brackets;
  • Part numbers with rod end bracket and/or mounting bolt available; (Not necessary to order a bracket for the applicable cylinder separately.);
  • With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,; CDQP2, CDQ2 S, CDBQ2)
    • Additional Information
    Built-in Magnet:
    Built-in Magnet
    Mounting Style:
    Through-hole (Standard)
    Bore Size:
    Bore Size 40 mm
    Port Thread Type:
    Rc/M Thread
    Cylinder Stroke:
    Standard Stroke 100 mm
    Body Option:
    With Rubber Bumper And Rod End Male Thread
    Lock Position:
    Head End Lock
    Manual Release Type:
    Non-lock Type
    Auto Switch:
    Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :5m, Apply Voltage :DC24V,AC100V
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
