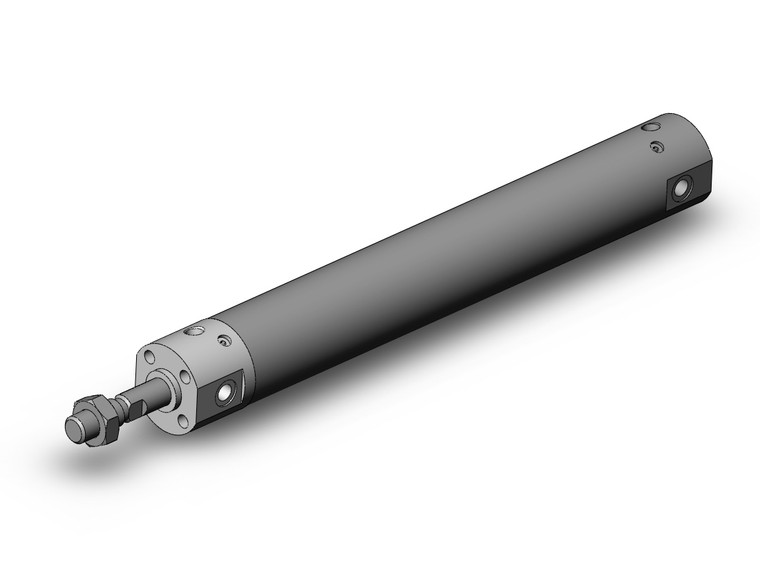

SMC CDG1BA20-125Z CG1 Cylinder, 20mm Bore, 125mm Stroke
SMC
$64.10
The SMC CDG1BA20-125Z CG1 Cylinder is a precision-engineered, double-acting, single rod air cylinder designed to meet the rigorous demands of modern engineering and manufacturing applications. This model, part of the esteemed CG1 series, features a 20mm bore size and a 125mm stroke, making it ideal for a wide range of industrial tasks.
Crafted with an impact extruded aluminum tube, the CDG1BA20-125Z ensures an exceptionally smooth internal finish, which minimizes break-away pressure and promotes seamless stroke action. This design is particularly beneficial for applications requiring precise control and efficiency.
Engineers will appreciate the versatility offered by the various mounting bracket options, allowing for easy integration into existing systems. The cylinder is also auto switch capable, providing enhanced functionality and adaptability in automated environments. The inclusion of female piston rod threads as a standard feature further enhances its utility, offering straightforward connectivity and installation.
For professionals seeking a reliable and adaptable air cylinder, the SMC CDG1BA20-125Z stands out with its robust construction and thoughtful design. Explore the full capabilities of this cylinder by accessing the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf) for detailed specifications and mounting options.
- Magnet:
- D (Built-in Magnet)
- Mounting:
- B (Basic)
- Type:
- A (Air Cushion)
- Bore:
- 20mm
- Port Thread Type:
- Rc (or M5, Depending on Style, Bore Size, and Thread Combination)
- Stroke:
- 125mm
- Thread:
- Male Rod End
- Suffix for Cylinder:
- w/o Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- No Switch
- Lead Wire or Prewire Connection:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- X Option:
- None
