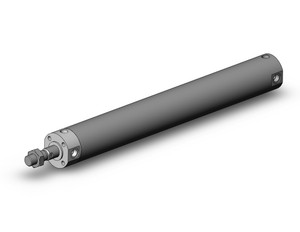

SMC CDG1BA32-300Z CG1 Cylinder, 32mm Bore, 300mm Stroke, Double Acting, Single Rod
SMC
$91.10
The SMC CDG1BA32-300Z CG1 Cylinder is engineered for precision and reliability in demanding industrial applications. This double-acting, single rod air cylinder is part of the esteemed C(D)G1-Z series, renowned for its robust performance and versatility. With a bore size of 32mm, this cylinder is crafted from impact extruded aluminum, ensuring an exceptionally smooth finish that minimizes break-away pressure and promotes seamless stroke action.
Designed with the professional engineer in mind, the CDG1BA32-300Z offers a range of features to enhance operational efficiency. It includes female piston rod threads as a standard option, facilitating easy integration into existing systems. The cylinder is auto switch capable, allowing for precise control and monitoring of cylinder position, with straightforward fine adjustment of the auto switch position.
Engineers will appreciate the variety of mounting bracket options available, providing flexibility in installation to suit specific application requirements. The absence of trunnion mounting female threads further simplifies the setup process.
For detailed specifications and additional technical information, please refer to the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf). Optimize your manufacturing processes with the SMC CDG1BA32-300Z CG1 Cylinder, where precision engineering meets practical application.
- Magnet:
- D (Built-in Magnet)
- Mounting:
- B (Basic)
- Type:
- A (Air Cushion)
- Bore:
- 32mm
- Port Thread Type:
- Rc (or M5, Depending on Style, Bore Size, and Thread Combination)
- Stroke:
- 300mm
- Thread:
- Male Rod End
- Suffix for Cylinder:
- w/o Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- No Switch
- Lead Wire or Prewire Connection:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- X Option:
- None
