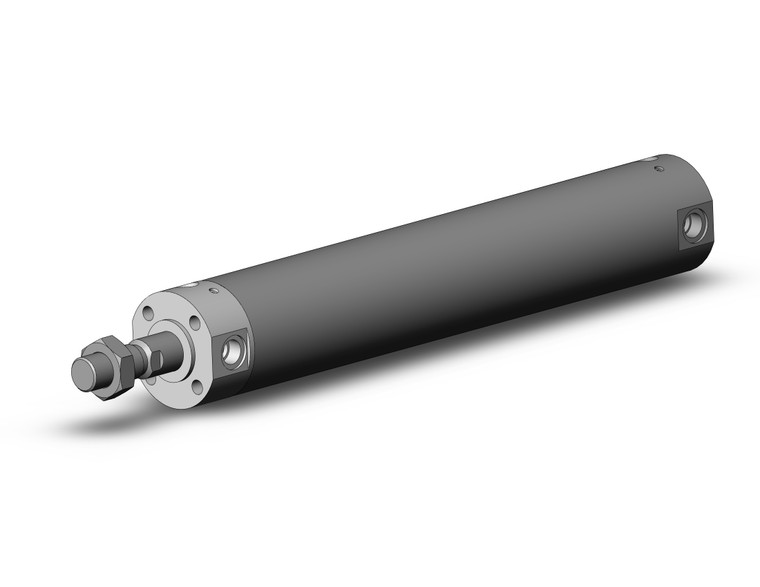

SMC CDG1BA40-200Z CG1 Cylinder
SMC
$103.10
The SMC CDG1BA40-200Z CG1 Cylinder is engineered for precision and reliability in demanding industrial applications. This double-acting, single rod air cylinder is part of the C(D)G1-Z series, renowned for its robust performance and versatility. With a bore size of 40mm, this cylinder is designed to deliver optimal force and smooth operation, thanks to its impact extruded aluminum tube that ensures a remarkably smooth finish. This design minimizes break-away pressure and enhances stroke action, making it ideal for applications requiring precise control.
Engineers will appreciate the flexibility offered by the various mounting bracket options, allowing for seamless integration into existing systems. The cylinder is auto switch capable, facilitating easy fine adjustment of the auto switch position to suit specific operational requirements. Additionally, the standard female piston rod threads provide compatibility with a wide range of attachments, enhancing the cylinder's adaptability.
The SMC CDG1BA40-200Z is built to meet the rigorous demands of modern manufacturing environments, offering durability and efficiency. For detailed specifications and installation guidance, refer to the Series Catalog. This product is an excellent choice for professionals seeking a reliable and high-performance air cylinder solution.
- Magnet:
- D (Built-in Magnet)
- Mounting:
- B (Basic)
- Type:
- A (Air Cushion)
- Bore:
- 40mm
- Port Thread Type:
- Rc (or M5, Depending on Style, Bore Size, and Thread Combination)
- Stroke:
- 200mm
- Thread:
- Male Rod End
- Suffix for Cylinder:
- w/o Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- No Switch
- Lead Wire or Prewire Connection:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- X Option:
- None
