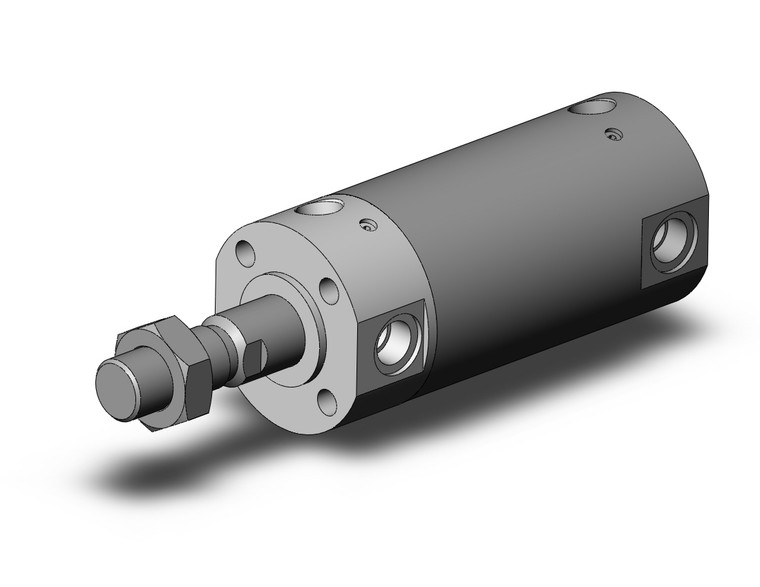

SMC CDG1BA40-25Z CG1 Cylinder, 40mm Bore, 25mm Stroke, Double-Acting, Single Rod
SMC
$85.00
The SMC CDG1BA40-25Z CG1 Cylinder is engineered for precision and reliability in demanding industrial applications. This double-acting, single rod air cylinder is part of the esteemed C(D)G1-Z series, renowned for its versatility and robust performance. With a bore size of 40mm and a stroke length of 25mm, this cylinder is designed to meet a wide range of operational requirements.
Constructed with an impact extruded aluminum tube, the CDG1BA40-25Z ensures an exceptionally smooth internal finish, facilitating low break-away pressure and seamless stroke action. This feature is critical for applications requiring precise control and efficiency. The cylinder is auto switch capable, allowing for easy integration into automated systems, and offers fine adjustment of the auto switch position to enhance operational flexibility.
Engineers will appreciate the standard female piston rod threads, which simplify installation and maintenance. The absence of trunnion mounting female threads further streamlines the setup process. Additionally, the cylinder supports various mounting bracket options, providing adaptability to different installation environments.
For detailed specifications and installation guidelines, refer to the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf). The SMC CDG1BA40-25Z CG1 Cylinder is the ideal choice for professionals seeking a reliable and efficient solution for their pneumatic system needs.
- Magnet:
- D (Built-in Magnet)
- Mounting:
- B (Basic)
- Type:
- A (Air Cushion)
- Bore:
- 40mm
- Port Thread Type:
- Rc (or M5, Depending on Style, Bore Size, and Thread Combination)
- Stroke:
- 25mm
- Thread:
- Male Rod End
- Suffix for Cylinder:
- w/o Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- No Switch
- Lead Wire or Prewire Connection:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- X Option:
- None
