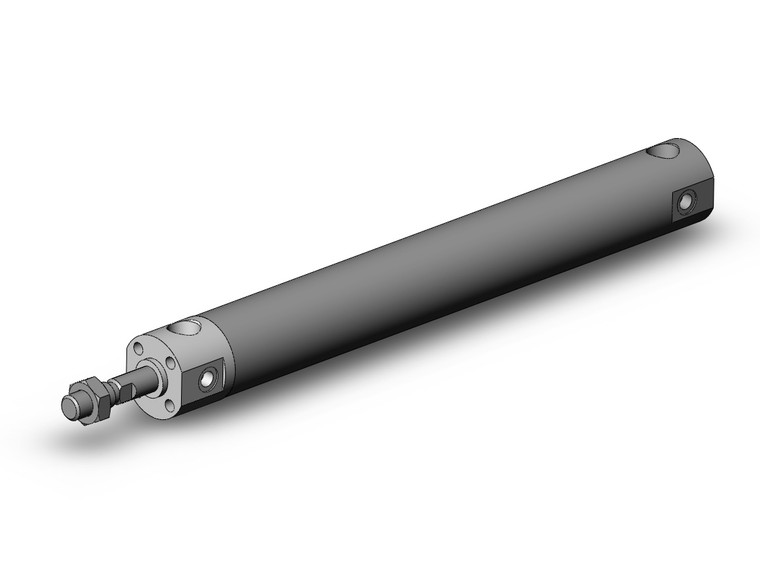

SMC CDG1BN20-150Z Air Cylinder, Double Acting, Single Rod, 20mm Bore, 150mm Stroke

The SMC CDG1BN20-150Z CG1 Cylinder is engineered for precision and reliability in demanding industrial applications. This double-acting, single rod air cylinder is part of the renowned CG1 series, offering unparalleled performance with its impact extruded aluminum tube. This construction ensures an exceptionally smooth finish, facilitating low break-away pressure and seamless stroke action, critical for maintaining efficiency in automated systems. Designed with versatility in mind, the CDG1BN20-150Z features a 20mm bore size, making it ideal for a wide range of applications. The cylinder is equipped with female piston rod threads as a standard feature, enhancing its adaptability to various setups. Engineers will appreciate the ease of fine-tuning the auto switch position, allowing for precise control and customization in complex systems. The absence of trunnion mounting female threads and the availability of various mounting bracket options further expand the cylinder's application potential, ensuring it can be seamlessly integrated into existing systems. Additionally, the cylinder is auto switch capable, providing advanced functionality for automated processes. For detailed specifications and integration guidelines, refer to the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf). This document provides comprehensive insights into the technical aspects and installation procedures, ensuring optimal performance and longevity of the SMC CDG1BN20-150Z CG1 Cylinder in your engineering projects.
