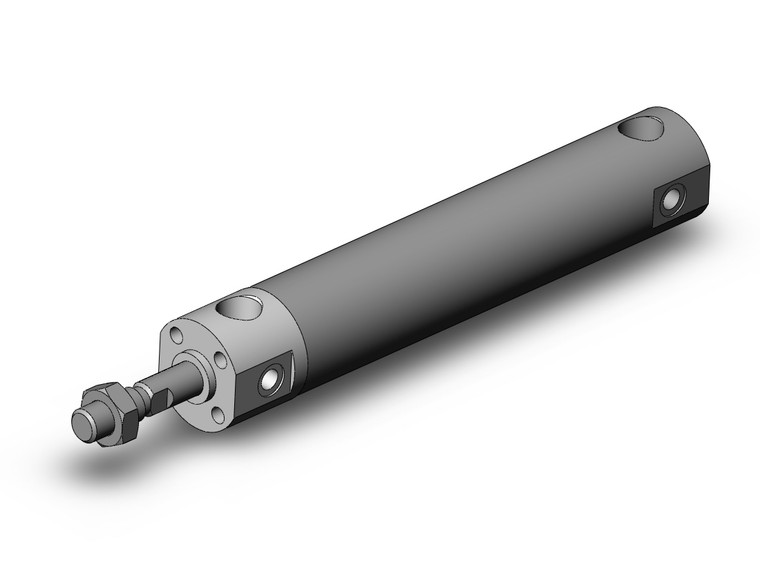

SMC CDG1BN20-75Z CG1 Cylinder, 20mm Bore, 75mm Stroke, Double Acting, Single Rod
SMC
$43.55
The SMC CDG1BN20-75Z CG1 Cylinder is a precision-engineered, double-acting, single rod air cylinder designed to meet the rigorous demands of modern industrial applications. This model, part of the esteemed CG1 series, features a 20mm bore size and a 75mm stroke, making it ideal for a wide range of pneumatic operations.
Crafted with an impact extruded aluminum tube, the CDG1BN20-75Z ensures an exceptionally smooth internal finish, which minimizes break-away pressure and promotes seamless stroke action. This design is particularly beneficial for applications requiring precise control and efficiency.
Engineers will appreciate the versatility offered by the various mounting bracket options, allowing for easy integration into existing systems. The cylinder is also auto switch capable, with straightforward fine adjustment of the auto switch position, enhancing operational flexibility and control.
The inclusion of female piston rod threads as a standard feature simplifies installation and maintenance, while the absence of trunnion mounting female threads ensures a streamlined design. This cylinder is part of a series that offers bore sizes ranging from 20mm to 100mm, catering to diverse application needs.
For detailed specifications and further technical insights, refer to the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf). Optimize your pneumatic systems with the SMC CDG1BN20-75Z, engineered for reliability and performance in demanding environments.
- Magnet:
- D (Built-in Magnet)
- Mounting:
- B (Basic)
- Type:
- N (Rubber Bumper)
- Bore:
- 20mm
- Port Thread Type:
- Rc (or M5, Depending on Style, Bore Size, and Thread Combination)
- Stroke:
- 75mm
- Thread:
- Male Rod End
- Suffix for Cylinder:
- w/o Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- No Switch
- Lead Wire or Prewire Connection:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- X Option:
- None
