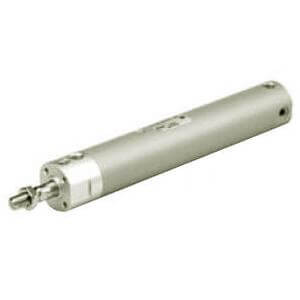

SMC CDG1BN25-125Z CG1 Series Air Cylinder, 25mm Bore, 125mm Stroke, Double Acting, Single Rod
SMC
$53.50
The SMC CDG1BN25-125Z CG1 Cylinder is a precision-engineered, double-acting, single rod air cylinder designed to meet the rigorous demands of industrial applications. This model, part of the esteemed CG1 series, features a 25mm bore size and a 125mm stroke, making it ideal for a wide range of pneumatic operations.
Crafted with an impact extruded aluminum tube, the CDG1BN25-125Z ensures an exceptionally smooth internal finish, which minimizes break-away pressure and promotes seamless stroke action. This design is crucial for applications requiring precise control and efficiency. The cylinder is equipped with female piston rod threads as a standard feature, enhancing its versatility and ease of integration into existing systems.
Engineers will appreciate the cylinder's compatibility with various mounting bracket options, allowing for flexible installation in diverse environments. The absence of a trunnion mounting female thread further simplifies the setup process. Additionally, the cylinder is auto switch capable, with easy fine adjustment of the auto switch position, ensuring optimal performance and reliability.
For detailed specifications and installation guidelines, refer to the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf). The SMC CDG1BN25-125Z is the epitome of durability and precision, making it a valuable asset for any engineering or manufacturing operation seeking to enhance their pneumatic systems.
- Magnet:
- D (Built-in Magnet)
- Mounting:
- B (Basic)
- Type:
- N (Rubber Bumper)
- Bore:
- 25mm
- Port Thread Type:
- Rc (or M5, Depending on Style, Bore Size, and Thread Combination)
- Stroke:
- 125mm
- Thread:
- Male Rod End
- Suffix for Cylinder:
- w/o Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- No Switch
- Lead Wire or Prewire Connection:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- X Option:
- None
