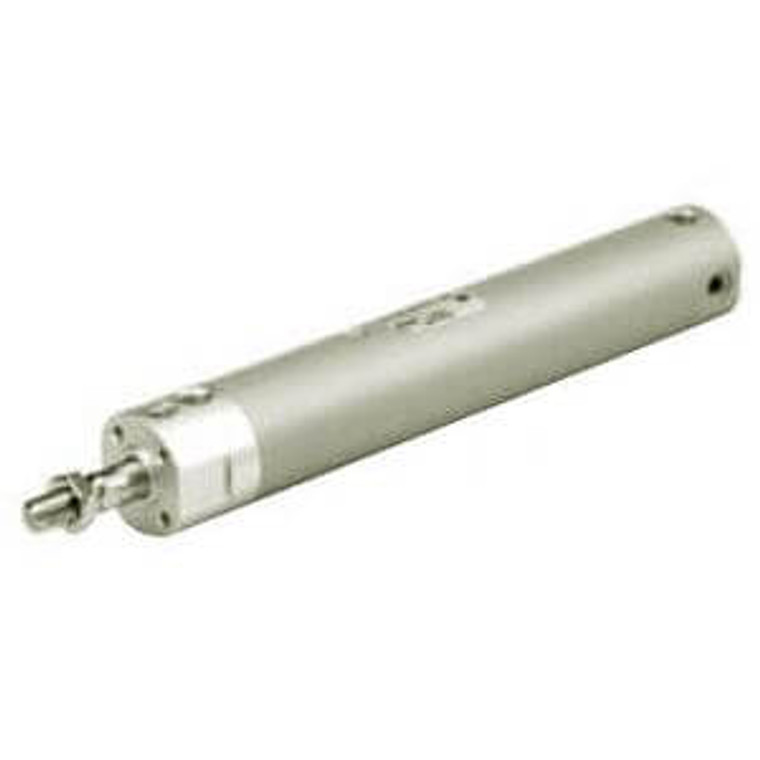

SMC CDG1BN25-350Z CG1 Series Double Acting Single Rod Air Cylinder, 25mm Bore, 350mm Stroke
SMC
$71.30
The SMC CDG1BN25-350Z CG1 Cylinder is a precision-engineered, double-acting, single rod air cylinder designed to meet the rigorous demands of modern industrial applications. This model, part of the esteemed CG1 series, features a 25mm bore size and a 350mm stroke, making it ideal for a wide range of pneumatic applications.
Crafted with an impact extruded aluminum tube, the CDG1BN25-350Z ensures an exceptionally smooth internal finish, which minimizes break-away pressure and promotes seamless stroke action. This design is particularly beneficial for applications requiring precise control and efficiency.
Engineers will appreciate the versatility offered by the various mounting bracket options, allowing for easy integration into existing systems. The cylinder is also auto switch capable, with straightforward fine adjustment of the auto switch position, enhancing operational flexibility and control.
The standard inclusion of female piston rod threads provides additional adaptability, while the absence of trunnion mounting female threads simplifies installation and maintenance. With bore sizes ranging from 20mm to 100mm, the CG1 series can accommodate diverse application needs.
For detailed specifications and further technical insights, refer to the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf). This document provides comprehensive information to assist in the selection and implementation of the SMC CDG1BN25-350Z CG1 Cylinder in your engineering projects.
- Manufacturer:
- SMC
- Manufacturer Part #:
- CDG1BN25-350Z
- Actuator Accessory Type:
- Air Cylinder
- Number of Cores:
- 2 pcs. (Or None in the Case of No Switch)
- Port Thread:
- Rc (or M5, Depending on Style, Bore Size, and Thread Combination)
- X Option:
- None
- Thread Type:
- Male Rod End
- Mounting:
- Basic
- Bore Size:
- 25mm
- Lead or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Stroke:
- 350mm
- Auto Switch:
- No Switch
- Magnet:
- Built-in Magnet
- Cylinder Suffix:
- w/o Rod Boot
- Pivot Bracket:
- None
