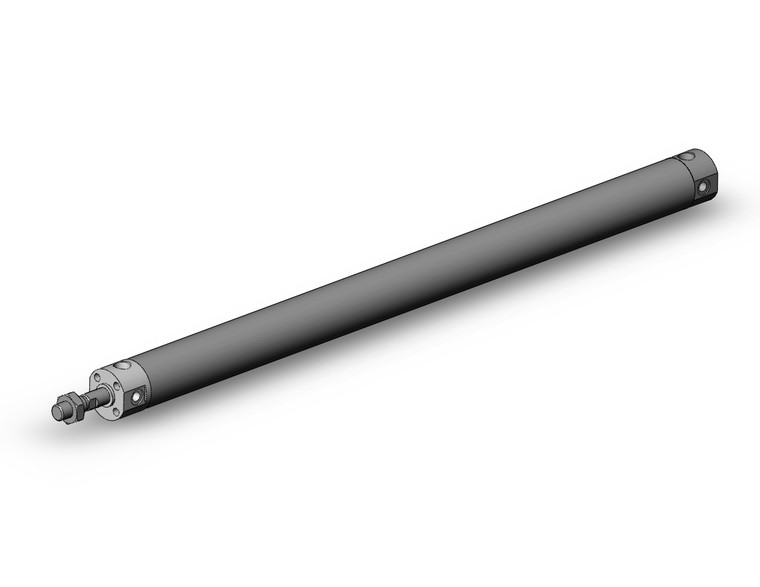

SMC CDG1BN25-400Z CG1 Cylinder, 25mm Bore, 400mm Stroke, Double Acting, Single Rod
SMC
$75.25
The SMC CDG1BN25-400Z CG1 Cylinder is a precision-engineered, double-acting, single rod air cylinder designed to meet the rigorous demands of modern industrial applications. This robust component features a 25mm bore size, making it ideal for a wide range of pneumatic systems. Constructed with an impact extruded aluminum tube, the cylinder ensures an exceptionally smooth finish, which facilitates low break-away pressure and seamless stroke action, enhancing operational efficiency.
Engineered for versatility, the CDG1BN25-400Z offers various mounting bracket options, allowing for flexible integration into existing systems. The inclusion of female piston rod threads as a standard feature simplifies installation and maintenance, while the auto switch capability provides easy fine adjustment of switch positions, optimizing performance and reliability.
This air cylinder is part of the Series CG1, which includes eight bore sizes ranging from 20mm to 100mm, ensuring compatibility with diverse application requirements. The absence of trunnion mounting female threads further streamlines the design, reducing potential points of failure and maintenance needs.
For engineers and manufacturing professionals seeking a durable and adaptable pneumatic solution, the SMC CDG1BN25-400Z CG1 Cylinder is an exemplary choice. Explore the Series Catalog for detailed specifications and additional options to tailor this component to your specific needs.
- Magnet:
- D (Built-in Magnet)
- Mounting:
- B (Basic)
- Type:
- N (Rubber Bumper)
- Bore:
- 25mm
- Port Thread Type:
- Rc (or M5, Depending on Style, Bore Size, and Thread Combination)
- Stroke:
- 400mm
- Thread:
- Male Rod End
- Suffix for Cylinder:
- w/o Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- No Switch
- Lead Wire or Prewire Connection:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- X Option:
- None
