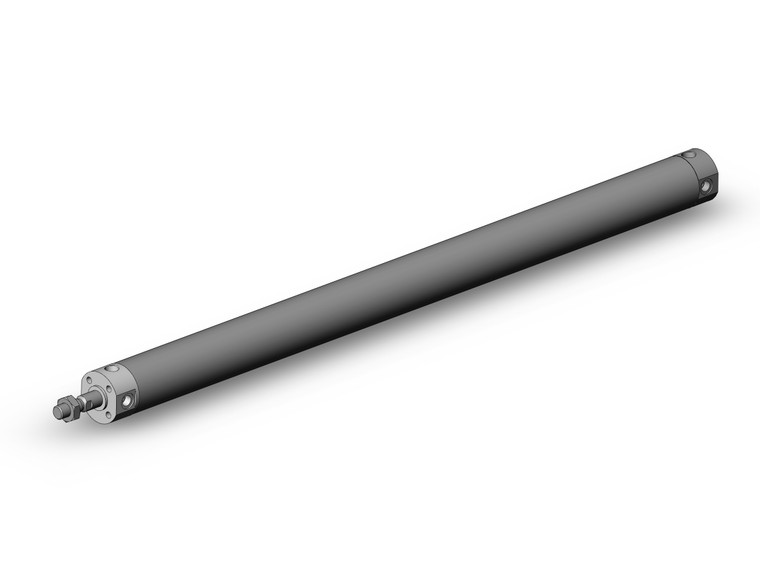

SMC CDG1BN32-500Z CG1 Series Air Cylinder, 32mm Bore, 500mm Stroke
SMC
$90.35
The SMC CDG1BN32-500Z CG1 Cylinder is a precision-engineered, double-acting, single rod air cylinder designed to meet the rigorous demands of modern industrial applications. This model, part of the esteemed CG1 series, features a 32mm bore size and a 500mm stroke, making it ideal for a wide range of automation tasks.
Crafted with an impact extruded aluminum tube, the CDG1BN32-500Z ensures an exceptionally smooth internal finish, which minimizes break-away pressure and promotes seamless stroke action. This design is particularly beneficial for applications requiring precise control and reliability.
Engineers will appreciate the versatility offered by the various mounting bracket options, allowing for easy integration into existing systems. The cylinder is also auto switch capable, facilitating straightforward position sensing and control. The inclusion of female piston rod threads as a standard feature further enhances its adaptability.
For those seeking a robust and efficient pneumatic solution, the SMC CDG1BN32-500Z stands out with its easy fine adjustment of the auto switch position and the absence of trunnion mounting female threads, which simplifies installation and maintenance.
Explore the full potential of the SMC CDG1BN32-500Z CG1 Cylinder by accessing the comprehensive Series Catalog. This resource provides detailed specifications and additional options to tailor the cylinder to your specific engineering requirements.
- Manufacturer:
- SMC
- Manufacturer Part #:
- CDG1BN32-500Z
- Actuator Accessory Type:
- Air Cylinder
- Number of Cores:
- 2 pcs. (Or None in the Case of No Switch)
- Port Thread:
- Rc (or M5, Depending on Style, Bore Size, and Thread Combination)
- X Option:
- None
- Thread Type:
- Male Rod End
- Mounting:
- Basic
- Bore Size:
- 32mm
- Lead or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Stroke:
- 500mm
- Auto Switch:
- No Switch
- Magnet:
- Built-in Magnet
- Cylinder Suffix:
- w/o Rod Boot
- Pivot Bracket:
- None
