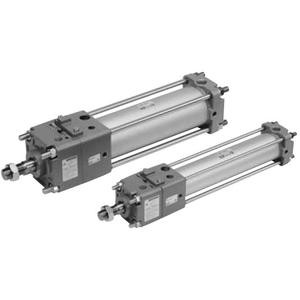

SMC CDLA2F40-300-D-M9BWL CLA2 Series Fine Lock Cylinder Double Acting,Single Rod
SMC
$537.85
The SMC CDLA2F40-300-D-M9BWL CLA2 Series Fine Lock Cylinder is a robust and reliable solution for applications requiring precise control and safety. This double-acting, single rod cylinder is designed for intermediate stops, emergency stops, and drop prevention, featuring a bi-directional lock for enhanced security. It is equipped with a magnetic field resistant 2-color indication solid state auto switch from the D-P3DW series, ensuring accurate and dependable performance. The inclusion of an auto switch (Series CDLA2: CDLA2) further enhances its functionality, making it an ideal choice for demanding industrial environments.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Rod Flange
- Cylinder Tube Material:
- Aluminum Tube
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 300 mm
- Suffix For Cylinder:
- Without Rod Boot,With Cushion On Both Ends(When Air-hydro,Without Cushion)
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Without Rod Boot,With Cushion On Both Ends(When Air-hydro,Without Cushion)
- Lock Operation:
- Spring And Pneumatic locking
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
