SMC CDQSL20-5S-M9NVS Cylinder, Compact

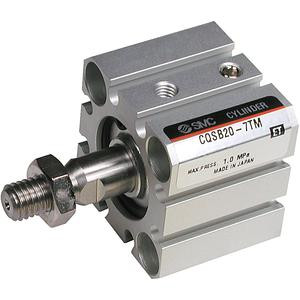

SMC CDQSL20-5S-M9NVS CQS Series Compact Cylinder

SMC
SKU:
CDQSL20-5S-M9NVS
$84.85
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CQS Series Compact Cylinder

  • With this compact square type, auto switch mounting on three or;　four sides is possible. This compact cylinder does not protrude from;　the body when mounting an auto switch;
  • Added pivot brackets for double clevis and compact type foot brackets;
  • With auto switch (Series CDQS: CDQS, CDQSW, CDQSK, CDQSKW,CDQS S)
    • Additional Information
    Built-in Magnet:
    Built-in Magnet
    Mounting Style:
    Foot Style
    Bore Size:
    Bore Size 20 mm
    Cylinder Stroke:
    Standard Stroke 5 mm
    Action:
    Single Acting,Spring Return
    Option:
    Standard (Rod End Female Thread)
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    1 pc.
    Made To Order:
    Standard
