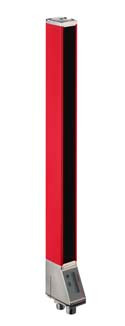

Leuze CSL710-R05-160.A/L-M12 Industrial Sensor System
Leuze
$1,192.00
The CSL710-R05-160.A/L-M12 is a precision industrial sensor engineered for demanding automation applications. Featuring IP65 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Protection rating: IP65 (dust-protected, water-resistant)
Supply voltage: 18...30 V DC with reverse polarity protection
Operating temperature: -30...60 °C (extended cold storage rating)
Connection: M12 quick-disconnect connector
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model CSL710-R05-160.A/L-M12). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- 710
- Operating principle:
- Throughbeam principle
- Device type:
- Receiver
- Contains:
- 2x BT-NC sliding block
- Application:
- Precise object detection
- Special version:
- Crossed-beam scanning,Diagonal-beam scanning,Parallel-beam scanning
- Operating range:
- 0.1 ... 3.5 m
- Operating range:
- Guaranteed operating range
- Operating range limit:
- 0.1 ... 4.5 m
- Operating range limit:
- Typical operating range
- Measurement field length:
- 160 mm
- Number of beams:
- 32 Piece(s)
- Beam spacing:
- 5 mm
- Minimum object diameter:
- 10 mm
- Protective circuit:
- Polarity reversal protection,Short circuit protected,Transient protection
- Supply voltage UB:
- 18 ... 30 V, DC
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 135 mA, The specified values refer to the entire package consisting of transmitter and receiver.
- Output current, max.:
- 100 mA
- Input resistance:
- 6,000 ?
- Number of inputs/outputs selectable:
- 4 Piece(s)
- Type:
- Inputs/outputs selectable
- Voltage type, outputs:
- DC
- Switching voltage, outputs:
- Typ. UB / 0 V
- Voltage type, inputs:
- DC
- Switching voltage, inputs:
- high: ?6V,low: ? 4 V
- Activation/disable delay:
- 0 ... 1 ms
- Readiness delay:
- 400 ms
- Cycle time:
- 1.36 ms
- Response time per beam:
- 30 µs
- COM mode:
- COM2,COM3
- Min. cycle time:
- COM2 = 2.3 ms
- Specification:
- V1.0.1,V1.1
- Process data IN:
- 2 bytes
- Process data OUT:
- 2 bytes
- Function:
- Configuration via software,Service
- Number of connections:
- 2 Piece(s)
- Plug outlet:
- Axial
- Function:
- Configuration interface,Signal IN,Signal OUT,Voltage supply
- Type:
- Male
- No. of pins:
- 8 -pin
- Function:
- Connection to transmitter
- Type:
- Female
- No. of pins:
- 5 -pin
- Design:
- Cubic
- Dimension (W x H x L):
- 29 mm x 54.8 mm x 233 mm
- Housing material:
- Metal
- Metal housing:
- Aluminum
- Lens cover material:
- Plastic / PMMA
- Net weight:
- 300 g
- Housing color:
- Red
- Type of fastening:
- Groove mounting,Via optional mounting device
- Type of display:
- LED,OLED display
- Number of LEDs:
- 2 Piece(s)
- Type of configuration:
- Software,Teach-in
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -30 ... 60 °C
- Ambient temperature, storage:
- -40 ... 70 °C
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 90314990
