Leuze

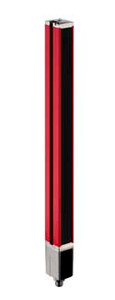

Leuze CSL710-T10-2080.A-M12 Light curtain transmitter

SKU:

CSL710-T10-2080.A-M12

UPC:

MPN:

50129025

Condition:

New

Series:

710

Operating principle:

Throughbeam principle

Device type:

Transmitter

Application:

Precise object detection

Special version:

Crossed-beam scanning,Diagonal-beam scanning,Parallel-beam scanning

Operating range:

0.3 ... 7 m

Operating range:

Guaranteed operating range

Operating range limit:

0.2 ... 9 m

Operating range limit:

Typical operating range

Measurement field length:

2,080 mm

Number of beams:

208 Piece(s)

Beam spacing:

10 mm

Light source:

LED, Infrared

Wavelength:

940 nm

Transmitted-signal shape:

Pulsed

Minimum object diameter:

20 mm

Protective circuit:

Polarity reversal protection,Short circuit protected,Transient protection

Supply voltage UB:

18 ... 30 V, DC

Residual ripple:

0 ... 15 %, From UB

Open-circuit current:

0 ... 435 mA, The specified values refer to the entire package consisting of transmitter and receiver.

Readiness delay:

400 ms

Cycle time:

6.64 ms

Number of connections:

1 Piece(s)

Plug outlet:

Axial

Function:

Connection to receiver,Sync-input,Voltage supply

Type of connection:

Connector

Thread size:

M12

Type:

Male

Material:

Metal

No. of pins:

5 -pin

Encoding:

A-coded

Design:

Cubic

Dimension (W x H x L):

29 mm x 35.4 mm x 2,153 mm

Housing material:

Metal

Metal housing:

Aluminum

Lens cover material:

Plastic / PMMA

Net weight:

2,150 g

Housing color:

Red

Type of fastening:

Groove mounting,Via optional mounting device

Type of display:

LED

Number of LEDs:

1 Piece(s)

Ambient temperature, operation:

-30 ... 60 °C

Ambient temperature, storage:

-40 ... 70 °C

Degree of protection:

IP 65

Protection class:

III

Approvals:

c UL US

Standards applied:

IEC 60947-5-2

Customs tariff number:

90314990

ECLASS 5.1.4:

27270910

ECLASS 8.0:

27270910

ECLASS 9.0:

27270910

ECLASS 10.0:

27270910

ECLASS 11.0:

27270910

ECLASS 12.0:

27270910

ECLASS 13.0:

27270910

ECLASS 14.0:

27270910

ECLASS 15.0:

27270910

ETIM 5.0:

EC002549

ETIM 6.0:

EC002549

ETIM 7.0:

EC002549

ETIM 8.0:

EC002549

ETIM 9.0:

EC002549

ETIM 10.0:

EC002549

Datasheet:

View

Brochure:

View

Declaration of Conformity:

View
