Description

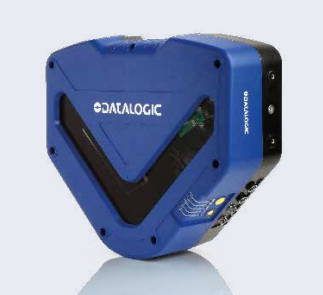

Datalogic DX8210-2100 Standard Resolution Industrial Laser Barcode Reader: Omnidirectional High Performance Reader DX8210-2100 Standard Resolution
Unrivaled Performance, Reliability & Efficiency
The Datalogic DX8210-2100 is a high-performance, all-in-one industrial laser barcode reader, purpose-built to optimize high-speed logistics and manufacturing applications. With its cutting-edge GENIUS X-pattern scanning technology, ASTRA G3 optics, and DST (Digital Signal Technology), the DX8210-2100 delivers exceptional accuracy and reliability, even in the most demanding conditions.
Key Features & Benefits:
✅ Omnidirectional X-Pattern Scanning – Reads barcodes at any orientation within a 900mm x 900mm (36” x 36”) omnidirectional scanning area.
✅ Ultra-Fast Scan Rate – 2000 scans per second ensures optimal performance in high-speed conveyor systems.
✅ Superior Code Recognition – Effectively reads low-quality, damaged, or unpredictable barcodes with ACR G5 reconstruction technology.
✅ ASTRA G3 Technology – Provides extended Depth of Field (DoF) and Field of View (FoV) without the need for mechanical autofocus.
✅ Seamless Connectivity & Synchronization – Equipped with Ethernet Bus Connection (EBC) for high-speed data transmission and real-time synchronization across multiple units.
✅ Industrial-Grade Durability – Robust aluminum alloy housing with IP65 rating ensures resistance to dust and moisture.
✅ Effortless Setup & Maintenance – Features e-GENIUS, a web-based programming tool for quick installation, configuration, and diagnostics.
✅ Failsafe Redundant Configuration – Eliminates system downtime with no single point of failure.
✅ Multi-Symbology Compatibility – Reads up to 22 barcode symbologies, including Code 39, Code 128, EAN/UPC, and ISBN128.
Technical Specifications:
- Resolution: 0.25mm (10 mils) – 1.0mm (40 mils)
- Reading Distance: 600mm – 1850mm (23” – 72”)
- Scan Rate: 1000–2000 scans/sec
- Aperture Angle: 60°
- Interfaces: Dual Ethernet TCP/IP, RS232/RS422, Ethernet/IP, Profibus, Profinet-IO
- Input Voltage: 20-30 VDC, 20W
- Temperature Range: 0°C to 50°C
- Weight: 7.7 kg (17 lbs)
- Dimensions: 381 x 328 x 92.5 mm (15” x 13” x 3.6”)
Ideal for High-Performance Applications:
✅ Airport Baggage Handling – Ensures seamless tracking and sorting of passenger luggage.
✅ Parcel Sorting Centers – Improves logistics efficiency in high-speed distribution hubs.
✅ Retail Distribution Warehouses – Enhances supply chain accuracy and inventory management.
✅ Manufacturing & Shop Floor Automation – Optimizes automated part tracking and quality control.
✅ Automatic Warehousing Systems – Increases throughput and traceability in smart warehouses.
Why Choose the Datalogic DX8210-2100
With state-of-the-art laser scanning technology, industry-leading reliability, and plug-and-play installation, the DX8210-2100 is the ultimate solution for high-speed barcode reading in automated logistics and manufacturing environments. Reduce downtime, boost efficiency, and improve traceability with this powerful omnidirectional barcode reader from Datalogic.
Order the Datalogic DX8210-2100 today and experience next-level automation!
