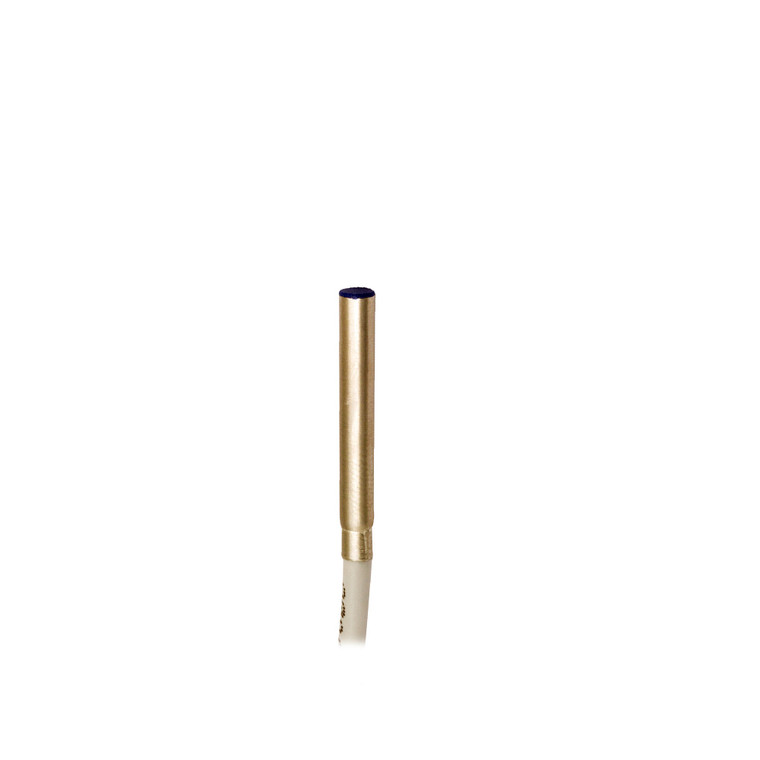

Datasensing AC1/AN-3A Sensors
Datasensing
$71.80
The Datasensing AC1/AN-3A Sensors are designed with a smooth stainless steel housing and a compact Ø4 mm diameter, making them ideal for precise applications. Featuring a 360° visible yellow output LED, these sensors ensure easy status monitoring. Choose between models with a 2 m PVC cable or an M8 connector, both offering IP67 protection for reliable performance in harsh environments. With a nominal sensing distance of 1.5mm and an operating range of 0 to 1.21mm, these sensors are perfect for detecting standard targets of 4.5x4.5mm FE360. They offer excellent correction factors for various materials, including copper, aluminum, brass, and stainless steel. The sensors boast a high switching frequency of 5kHz and operate within a voltage range of 10 to 30Vdc. Additional features include short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety. The robust AISI303 stainless steel construction and PBT active head material provide resilience in temperatures ranging from -25°C to +70°C. Certified with CE and cULus approvals, these sensors meet EMC compatibility standards and withstand shocks and vibrations as per IEC standards.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 4.5x4.5mm FE360
- Correction Factor:
- copper: 0,29 ± 10% / aluminium: 0,23 ± 10% / brass: 0,31 ± 10% / stainless steel: 0,66 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø4 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø4
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
