Datasensing AC1/AP-1A Sensors
Datasensing
$63.39

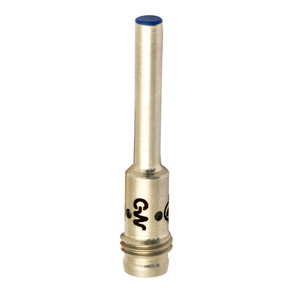

The Datasensing AC1/AP-1A Sensors are designed with a smooth stainless steel housing and a compact Ø4 mm diameter, making them ideal for precise applications. Featuring a yellow output LED that is visible from 360°, these sensors are available with either a 2 m PVC cable or an M8 connector, ensuring flexibility in installation. With an IP67 protection degree, they are built to withstand harsh environments.
These sensors offer a nominal sensing distance of 0.8mm and an operating distance of 0 to 0.65mm, with a standard target size of 4x4mm FE360. They are equipped with a PNP output type and a normally open (NO) output function, operating at a voltage range of 10 to 30Vdc. The sensors boast a high switching frequency of 5kHz and are protected against short-circuits, reverse polarity, impulsive overvoltage, and inductive loads.
Constructed from AISI303 stainless steel, the sensors are durable and reliable, with a thermal drift of Sr less than 10% and a repeat accuracy of less than 5%. They are shielded for flush mounting and have a hysteresis range of 1 to 20%. The sensors are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2, ensuring they meet rigorous safety and performance standards. With an operating temperature range of -25°C to +70°C, they are suitable for a wide range of industrial applications.
- Nominal sensing distance:
- 0,8mm
- Operanting distance:
- 0 0,65mm
- Standard target:
- 4x4mm FE360
- Correction Factor:
- copper: 0,28 ± 10% / aluminium: 0,21 ± 10% / brass: 0,32 ± 10% / stainless steel: 0,63 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø4 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø4
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
