Datasensing AC1/CP-3F Sensors
Datasensing
$83.04

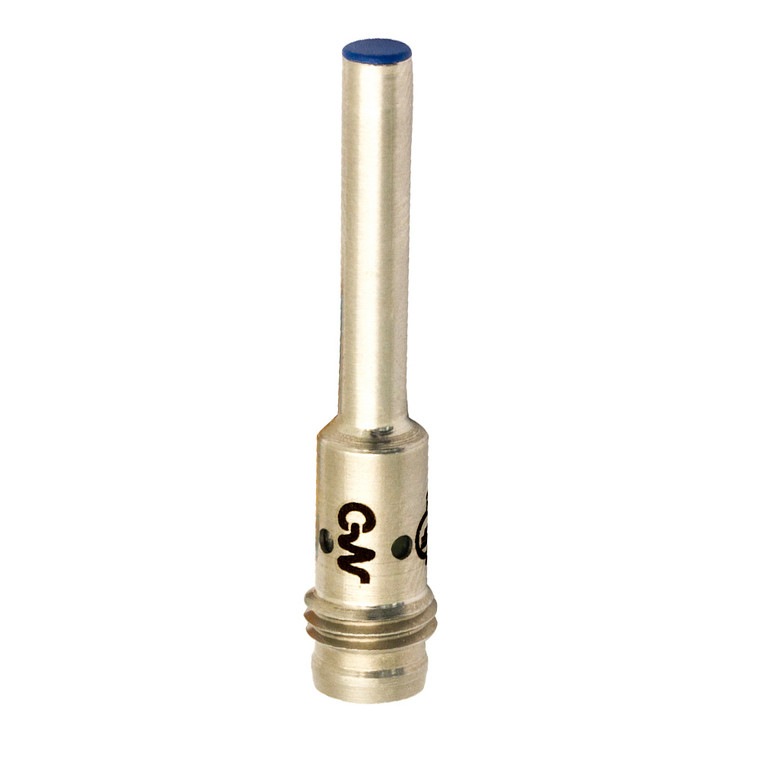

The Datasensing AC1/CP-3F Sensors are designed for precision and reliability in various industrial applications. Featuring a smooth stainless steel housing with a compact Ø4 mm diameter, these sensors are equipped with a 360° visible yellow output LED for easy status monitoring. They offer a nominal sensing distance of 1.5 mm and an operating distance range of 0 to 1.21 mm, making them ideal for detecting standard targets of 4.5x4.5mm FE360. The sensors are available in models with a 2 m PVC cable or an M8 connector, providing flexibility in installation.
Engineered with IP67 protection, these sensors are resistant to dust and water, ensuring durability in harsh environments. They operate on a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 100mA. The sensors feature a PNP output type with an NC output function, and a high switching frequency of 5kHz for rapid response. Additional protective features include short-circuit, reverse polarity, and impulsive overvoltage protection, as well as protection against inductive loads.
Constructed with AISI303 stainless steel and an active head made of PBT, the sensors are robust and reliable, withstanding operating temperatures from -25°C to +70°C. They are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2. With a weight of just 4g and dimensions of Ø4 / L = 38.4mm, these sensors are easy to integrate into existing systems, providing efficient and accurate proximity detection.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 4.5x4.5mm FE360
- Correction Factor:
- copper: 0,29 ± 10% / aluminium: 0,23 ± 10% / brass: 0,31 ± 10% / stainless steel: 0,66 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø4 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 4g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø4
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
