Datasensing AC6/CP-3A Sensors
Datasensing
$75.48

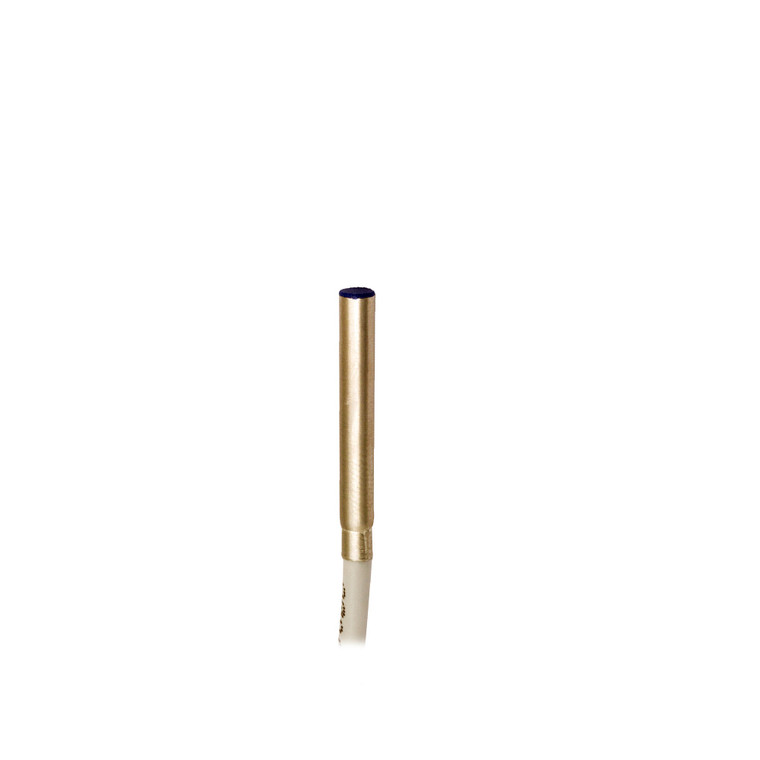

The Datasensing AC6/CP-3A Inductive Sensor is designed for precision and reliability in industrial applications. Featuring a smooth stainless steel housing with a compact Ø4 mm diameter, this sensor offers a nominal sensing distance of 1.5 mm and an operating distance range of 0 to 1.21 mm. It is equipped with a yellow output LED that is visible from 360°, ensuring easy status monitoring. The sensor is available with a 2 m PVC cable or M8 connector models, providing flexibility in installation. With an IP67 protection degree, it is resistant to dust and water, making it suitable for harsh environments.
The sensor's output type is PNP with a normally closed (NC) function, and it operates at a switching frequency of 5kHz. It supports an operating voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 100mA. The sensor is designed with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety. It also features a time delay before availability of ? 50ms and a maximum ripple content of ? 10%.
Constructed with AISI303 stainless steel and an active head made of PBT, the sensor is robust and reliable. It operates efficiently in temperatures ranging from -25°C to +70°C. The sensor is CE and cULus approved, with EMC compatibility according to IEC 60947-5-2 standards. It also meets vibration and shock standards IEC 60068-2-6 and IEC 60068-2-27, respectively. With a weight of 30g and dimensions of Ø4 / L = 24.9mm, this sensor is ideal for applications requiring a compact and durable solution.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 4.5x4.5mm FE360
- Correction Factor:
- copper: 0,29 ± 10% / aluminium: 0,23 ± 10% / brass: 0,31 ± 10% / stainless steel: 0,66 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø4 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø4
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
