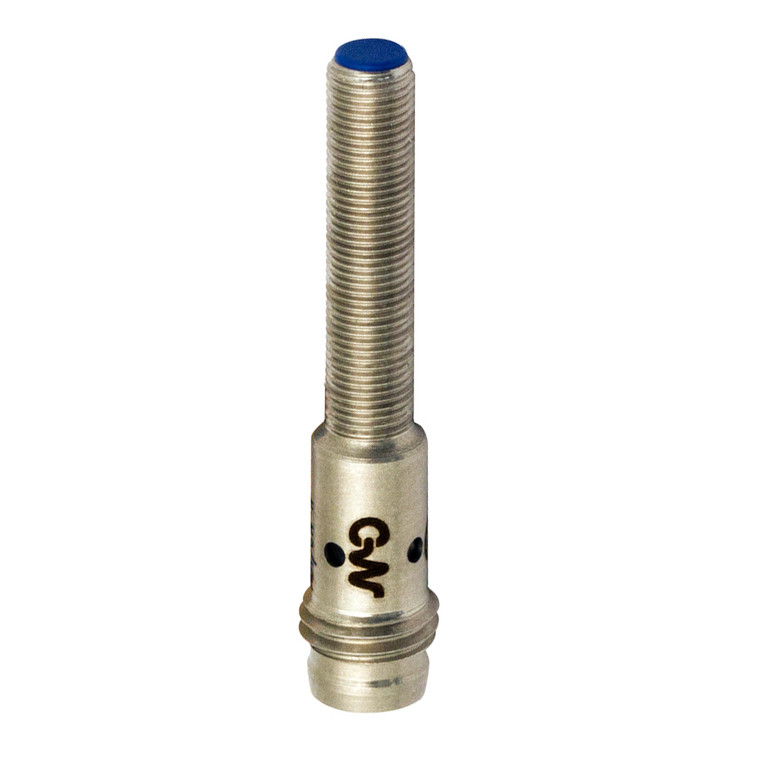

Datasensing AD1/AN-1F Sensors
Datasensing
$73.55
The Datasensing AD1/AN-1F Sensors are designed for precision and reliability in industrial applications. With an extremely compact design, these sensors measure just M5 x 30 mm for cable and 38 mm for plug length, making them ideal for tight spaces. They operate on a voltage range of 10 to 30 Vdc and can handle an output current of up to 100 mA. The sensors feature a yellow LED output indicator for easy status monitoring and are fully protected against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection.
Constructed with a robust AISI303 stainless steel housing, these sensors are built to withstand harsh environments, offering IP67 mechanical protection. The M8 plug output ensures secure connections, while the PBT active head material enhances durability. With a nominal sensing distance of 0.8mm and an operating distance of 0 to 0.65mm, these sensors are highly accurate, boasting a repeat accuracy of less than 5% and a thermal drift of Sr under 10%.
The Datasensing AD1/AN-1F Sensors are equipped with a shielded mounting design and can operate in temperatures ranging from -25°C to +70°C. They are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2, ensuring reliable performance in various industrial settings. Supplied with two M5x0.5 nuts, these sensors are ready for immediate installation and use.
- Nominal sensing distance:
- 0,8mm
- Operanting distance:
- 0 0,65mm
- Standard target:
- 5x5mm FE360
- Correction Factor:
- copper: 0,32 ± 10% / aluminium: 0,26 ± 10% / brass: 0,35 ± 10% / stainless steel: 0,66 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M5 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 4g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 2Nm
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- M5
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M5x0.5
- Mechanical Protection:
- IP67
